Conn; Term Blk; PCB; Spring Cage; 6; 3.5mm; 45Deg; 24-16AWG; 13.5A; 200V
6 Position Wire to Board Terminal Block 45° 135° Angle with Board 0.138" 3.50mm Through Hole
得捷:
TERM BLOCK 6POS 45DEG 3.5MM PCB
艾睿:

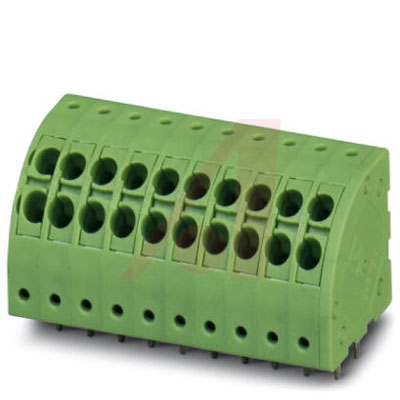

This pc terminal block 1724964 PCB terminal block manufactured from Phoenix Contact will connect wires together. Its pitch is 3.5 mm. It has a maximum voltage rating of 200 V. This is a 1-row connector. This device has a maximum current rating of 13.5 A. 1724964 is housed in polyamide. Its wire is 16-24 AWG. It uses the solder termination method. This product is 22.4 mm long, 16 mm tall and 16 mm deep.
Allied Electronics:
Conn; Term Blk; PCB; Spring Cage; 6; 3.5 mm; 45 Deg; 24-16 AWG; 13.5 A; 200 V
MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 240 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 6 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection dire
