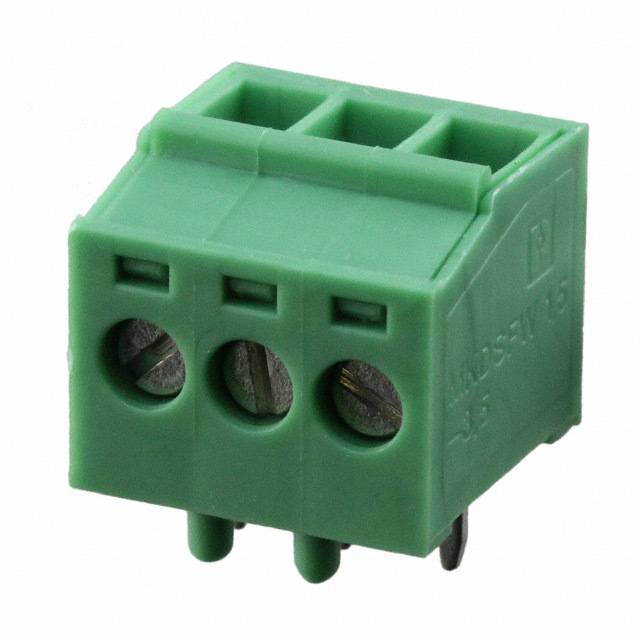

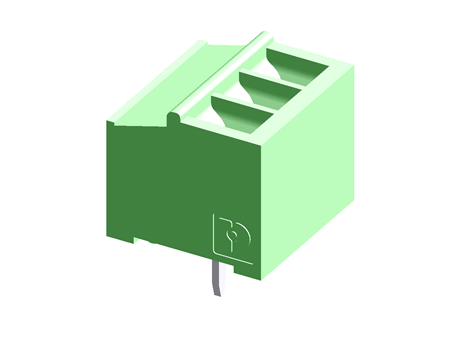

Conn Terminal Block 3POS 3.5mm Solder RA Thru-Hole 12A
3 接线板 - 线至板 垂直，带板 0.138"（3.50mm） 通孔
得捷:
TERM BLK 3P TOP ENTRY 3.5MM PCB
艾睿:

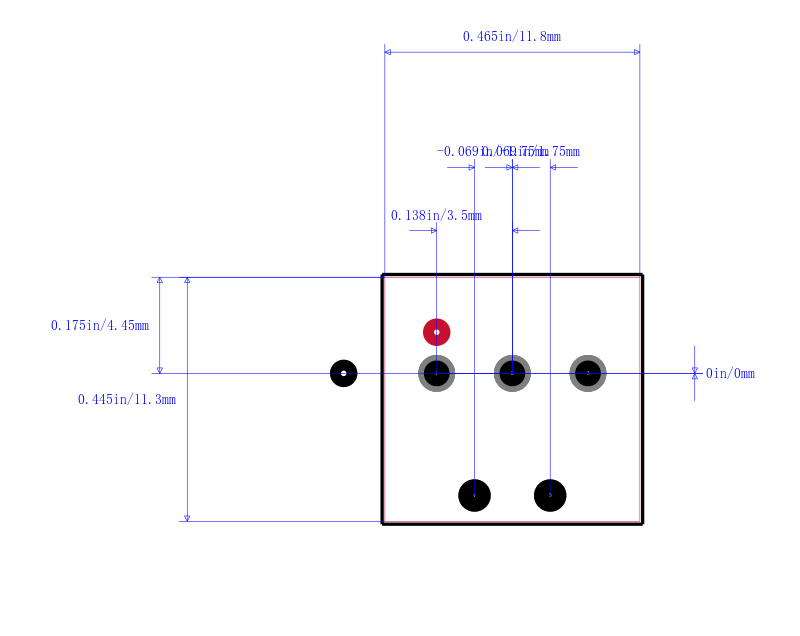

Need to ensure strong connections between circuits? This 1868131 PCB terminal block from Phoenix Contact will do just that! It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.5 mm. It has a right angle body orientation. This device has a maximum current rating of 12 A. 1868131 is housed in polyamide. Its wire is 16-26 AWG. This product is 11.8 mm long, 10.45 mm tall and 11.3 mm deep. It uses the solder termination method.
Verical:
Conn PC Terminal Block 3 POS 3.5mm Solder RA Thru-Hole 12A
MASTER:
PCB terminal block - nominal current: 12 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec
Online Components:
Conn Terminal Block 3 POS 3.5mm Solder RA Thru-Hole 12A
Electro Sonic:
PCB terminal block - nominal current: 12 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² ...
