固定接线端子 GSMKDSN 1.5/ 3-7.62
Conn PC Terminal Block 3 POS 7.62mm Solder Thru-Hole 16A
得捷:
TERM BLOCK 3POS 55DEG 7.62MM PCB
贸泽:
固定接线端子 GSMKDSN 1.5/ 3-7.62
艾睿:

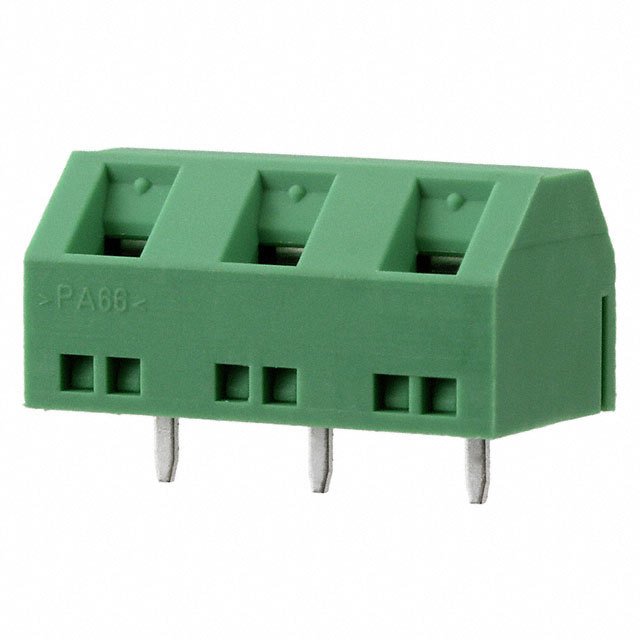

This pc terminal block 1718618 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. Its pitch is 7.62 mm. It has a maximum voltage rating of 500 V. This is a 1-row connector. This device has a maximum current rating of 16 A. 1718618 is housed in polyamide. It uses the solder termination method. This product is 22.86 mm long, 11 mm tall and 12 mm deep. Its wire is 16-26 AWG.
Verical:
Conn PC Terminal Block 3 POS 7.62mm Solder Thru-Hole 16A
Online Components:
Conn PC Terminal Block 3 POS 7.62mm Solder Thru-Hole 16A
Electro Sonic:
PCB terminal block - nominal current: 16 A - rated voltage III/2: 630 V - nominal cross section: 1.5 mm² ...
