1751264

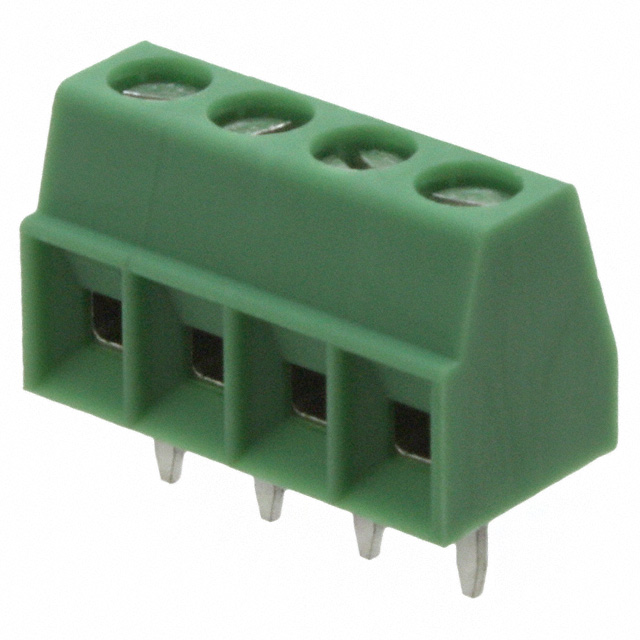

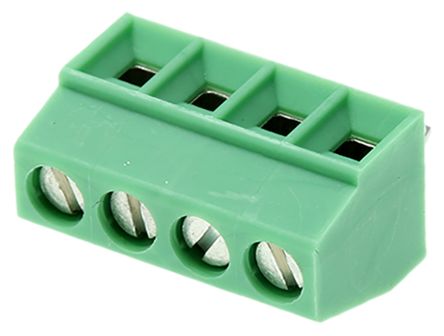

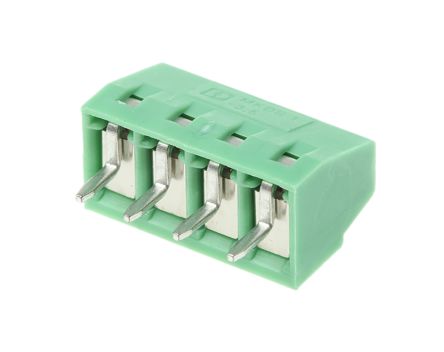

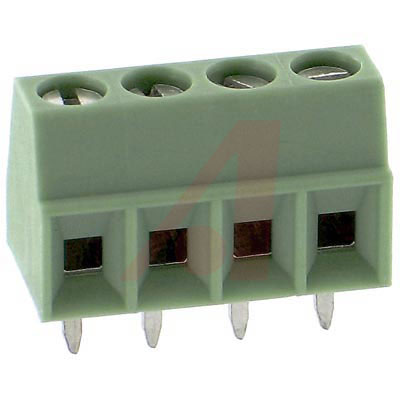

Phoenix Contact COMBICON MKDS 3.5 mm 印刷电路板端子块专业 Phoenix Contact MKDS 系列线对板 3.5 mm 节距连接器3.5mm 节距 螺钉连接 28 - 16 无线量规量程 绿色 ### Phoenix Contact COMBICON 3.5mm 印刷电路板端子块

Contact COMBICON MKDS 3.5 mm 印刷电路板端子块

专业 Phoenix Contact MKDS 系列线对板 3.5 mm 节距

3.5mm 节距

螺钉连接

28 - 16 无线量规量程

绿色

得捷:
TERM BLK 4POS SIDE ENT 3.5MM PCB

欧时:
PCB terminal block, 3.5mm pitch, 4 way

立创商城:
3.5mm 排数:1 每排P数:4 直针

贸泽:
Fixed Terminal Blocks 4P 3.5mm 90DEG

艾睿:

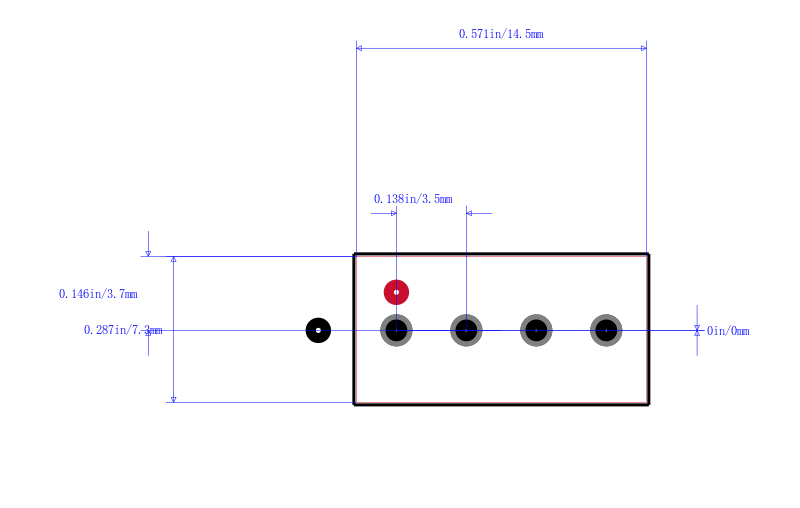

Create a bridge between two sides of a circuit by implementing this pc terminal block 1751264 PCB terminal block from Phoenix Contact. This is a 1-row connector. It has a straight body orientation. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V@IEC|300V@UL. This device has a maximum current rating of 13.5 A. 1751264 is housed in polyamide. Its wire is 16-26@IEC|16-30@UL AWG. This product is 14.5 mm long, 8.5 mm tall and 7.3 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; Screw; 4: 3.5 mm; 26-16AWG; 10 A; 160 V; Solder; 2.5 kV; PA

Verical:
Conn PC Terminal Block 4 POS 3.5mm Solder ST Thru-Hole 13.5A

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 4 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB conn

Online Components:
Conn PC Terminal Block 4 POS 3.5mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² ...
