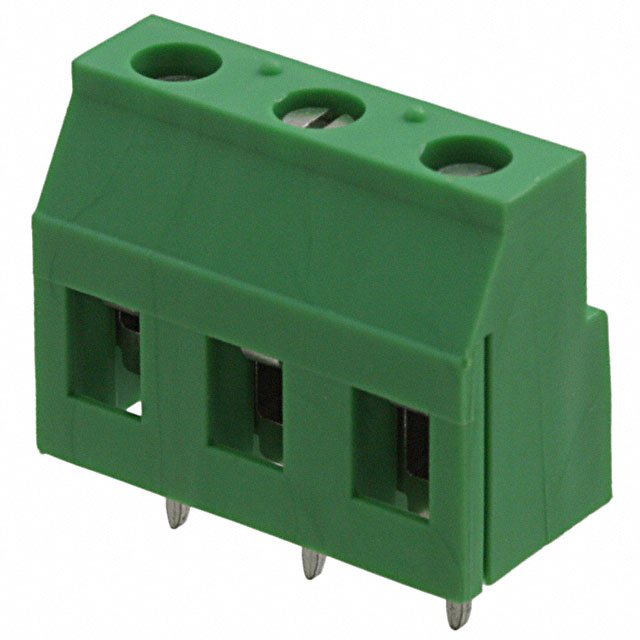

1731035

Phoenix Contact COMBICON GMKDS 系列 7.5mm 节距 3 路 绿色 印刷电路板接线端子块 1731035, 通孔

Conn Terminal Block 3 POS 7.5mm Solder ST Thru-Hole 30A

欧时:
GMKDS 3/ 3

得捷:
TERM BLK 3POS SIDE ENT 7.5MM PCB

艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1731035 PCB terminal block. Its pitch is 7.5 mm. It has a maximum voltage rating of 500 V. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 30 A. 1731035 is housed in polyamide. It uses the solder termination method. This product is 22.5 mm long, 18 mm tall and 11.2 mm deep. Its wire is 12-24 AWG.

Verical:
Conn PC Terminal Block 3 POS 7.5mm Solder ST Thru-Hole 24A

MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - pitch: 7.5 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn Terminal Block 3 POS 7.5mm Solder ST Thru-Hole 30A

Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² ...
