1727065

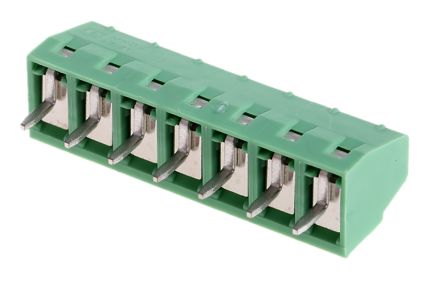

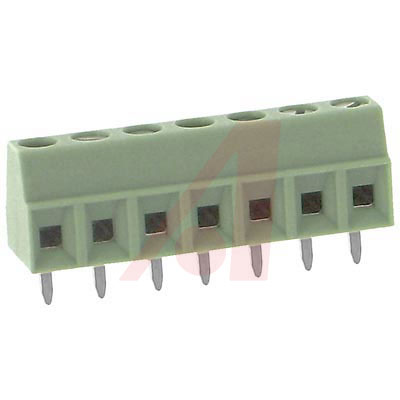

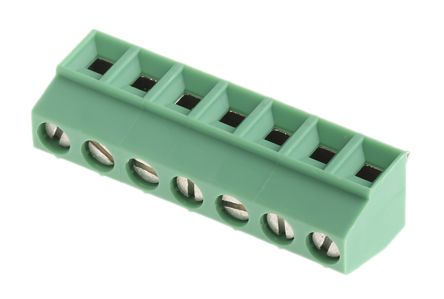

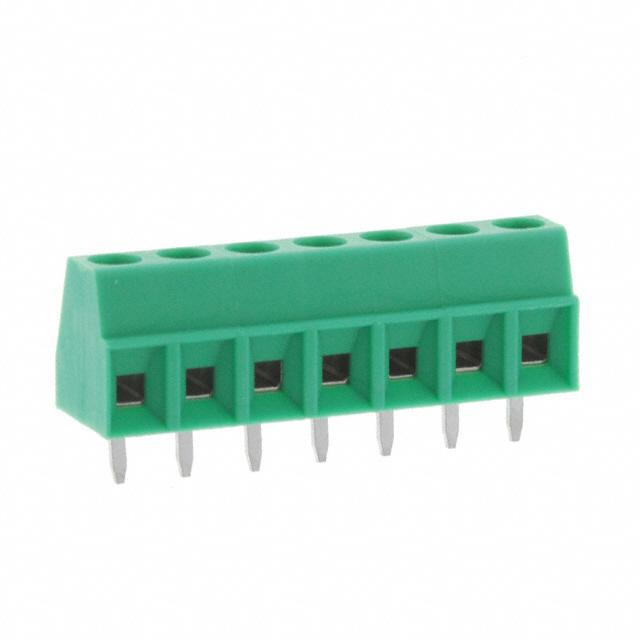

PHOENIX CONTACT  1727065  线至板接线端子, 7 路, 300 V, 10 A, 26 AWG, 16 AWG, 1.5 mm²

Contact COMBICON MKDS 3.81mm 印刷电路板端子块

COMBICON MKDS 印刷电路板端子块采用小型紧凑设计。

###

**特点和优势**

• 稳健的移动笼原理确保接入达1.5 mm²（1.0 mm² 绞合）的导线

• 具有单独的焊接针脚和端子套管，能可靠消除应力

• 额定值 200 V/12 A

• 聚酰胺 6.6 Krilen UL94V0

### 认可

UL E60425, CSA LR13631

欧时:
Phoenix Contact 1727065 COMBICON MKDS 系列 3.81mm 节距 7 路 直向 印刷电路板接线端子块, 通孔

得捷:
TERM BLK 7P SIDE ENT 3.81MM PCB

贸泽:
固定接线端子 7P 3.81mm 90DEG

e络盟:
线至板接线端子, 3.81 mm, 7 路, 26 AWG, 16 AWG, 1.5 mm², 螺丝

艾睿:
Perfect for troubleshooting this pc terminal block 1727065 PCB terminal block manufactured from Phoenix Contact will help isolate sections of a circuit. It has a maximum voltage rating of 200 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 3.81 mm. 1727065 is housed in polyamide. This device has a maximum current rating of 13.5 A. This product is 26.66 mm long, 8.5 mm tall and 7.3 mm deep. Its wire is 16-26 AWG. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; Screw; 7; 3.81 mm; Front; 26-16 AWG; 10 A; 160 V; Solder; PA

Verical:
Conn PC Terminal Block 7 POS 3.81mm Solder ST Thru-Hole 13.5A Cardboard

Newark:
# PHOENIX CONTACT  1727065  Wire-To-Board Terminal Block, 3.81 mm, 7 Positions, 26 AWG, 16 AWG, 1.5 mm², Screw

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² - pitch: 3.81 mm - number of positions: 7 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB con

Online Components:
Conn PC Terminal Block 7 POS 3.81mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² ...
