Conn Terminal Block 6POS 3.5mm Solder RA Thru-Hole 12A
Conn Terminal Block 6 POS 3.5mm Solder RA Thru-Hole 12A
得捷:
TERM BLK 6P TOP ENTRY 3.5MM PCB
艾睿:

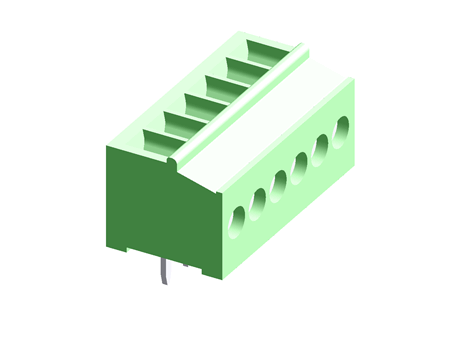

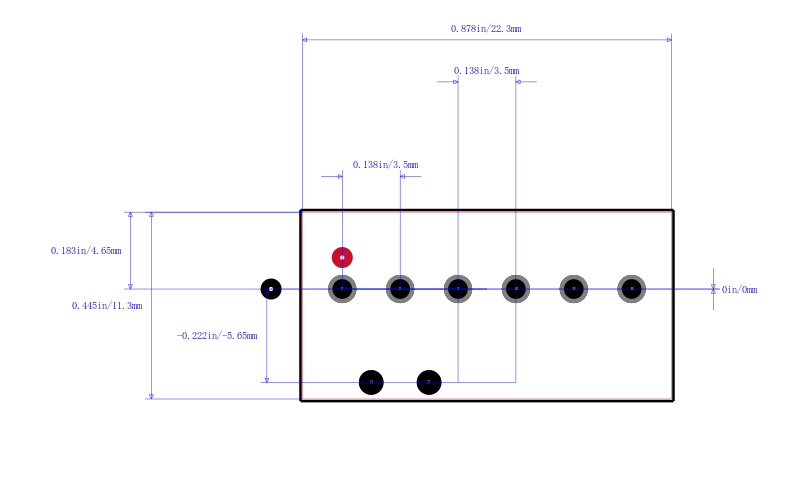

Perfect for troubleshooting this 1868160 PCB terminal block manufactured from Phoenix Contact will help isolate sections of a circuit. It has a right angle body orientation. Its pitch is 3.5 mm. This is a 1-row connector. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 12 A. 1868160 is housed in polyamide. It uses the solder termination method. Its wire is 16-26 AWG. This product is 22.3 mm long, 10.45 mm tall and 11.3 mm deep.
MASTER:
PCB terminal block - nominal current: 12 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 6 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec
Online Components:
Conn Terminal Block 6 POS 3.5mm Solder RA Thru-Hole 12A
Electro Sonic:
PCB terminal block - nominal current: 12 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² ...
