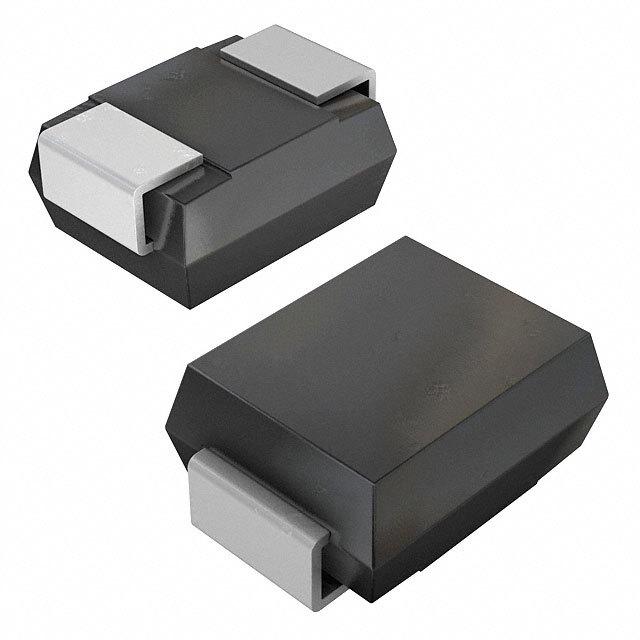

瞬态电压抑制二极管 Transient Voltage Suppression Diodes
16.7V Clamp 59.9A Ipp Tvs Diode Surface Mount DO-214AA SMBJ
得捷:
TVS DIODE 10.2VWM 16.7VC DO214AA
立创商城:
1KSMB12A
贸泽:
ESD 抑制器/TVS 二极管 12V 1KW 5% BiDirectional
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this 1KSMB12A TVS diode from Littelfuse. Its peak pulse power dissipation is 1000 W. This device&s;s maximum clamping voltage is 16.7 V and minimum breakdown voltage is 11.4 V. Its maximum leakage current is 1 μA. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 10.2V 1KW Automotive 2-Pin SMB T/R
Win Source:
TVS DIODE 10.2VWM 16.7VC SMD
工作电压 10.2 V
击穿电压 10.8 V
电路数 1
耗散功率 1 kW
钳位电压 16.7 V
测试电流 1 mA
脉冲峰值功率 1000 W
最小反向击穿电压 11.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
宽度 3.94 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1KSMB12A Littelfuse 力特 | 当前型号 | 当前型号 |
1KSMBJ12A 力特 | 类似代替 | 1KSMB12A和1KSMBJ12A的区别 |
