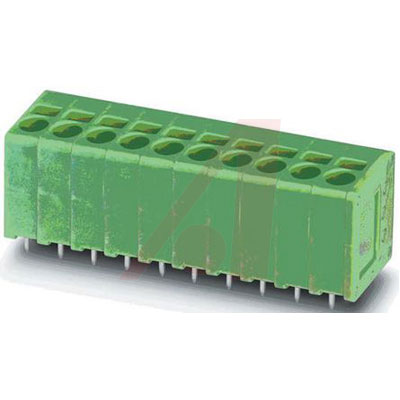

Phoenix Contact COMBICON SPT 3.5mm 印刷电路板端子块打印接线端子，带前部弹簧加载连接 焊接引脚，可在印刷电路板上提供高稳定性 即插即用技术，用于刚性或柔性电缆（带套圈） 用于柔性电缆（不带套圈）— 开放式端子室，带螺丝刀 可垂直 V 或水平 H 连接 3.5 和 5 mm 栅格可一起使用 Dimensions --- Height x length | 13.5 x 14.4 mm Width | Pin number x grid + 1.4 mm ### 认可UL/CUL### Phoenix Contact COMBICON 3.5mm 印刷电路板端子块
接线板 - 线至板
欧时:
Phoenix Contact COMBICON SPT 3.5mm 印刷电路板端子块打印接线端子，带前部弹簧加载连接 焊接引脚，可在印刷电路板上提供高稳定性 即插即用技术，用于刚性或柔性电缆（带套圈） 用于柔性电缆（不带套圈）— 开放式端子室，带螺丝刀 可垂直 V 或水平 H 连接 3.5 和 5 mm 栅格可一起使用 Dimensions --- Height x length | 13.5 x 14.4 mm Width | Pin number x grid + 1.4 mm ### 认可UL/CUL### Phoenix Contact COMBICON 3.5mm 印刷电路板端子块
得捷:
TERM BLK 9P TOP ENTRY 3.5MM PCB
艾睿:
Create a bridge between two sides of a circuit by implementing this spring cage 1990928 PCB terminal block from Phoenix Contact. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 17.5 A. 1990928 is housed in polyamide. Its wire is 16-24 AWG. This product is 32.9 mm long, 14.4 mm tall and 13.5 mm deep. It uses the solder termination method.
Allied Electronics:
Spring-cage PCB termination block, pitch
Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² ...
