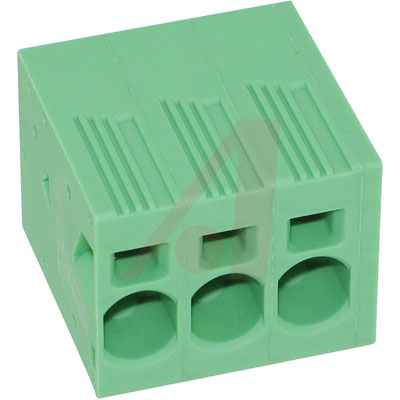

Conn PC Terminal Block 3POS 7.5mm Solder RA Thru-Hole 41A
Conn PC Terminal Block 3 POS 7.5mm Solder RA Thru-Hole 41A
得捷:
TERM BLK 3POS SIDE ENT 7.5MM PCB
艾睿:
Keep your connections strong with this pc terminal block 1719202 PCB terminal block from Phoenix Contact utilizing clamps and screws. This is a 1-row connector. It has a maximum voltage rating of 800 V. It has a right angle body orientation. Its pitch is 7.5 mm. This device has a maximum current rating of 41 A. 1719202 is housed in polyamide. Its wire is 8-24 AWG. This product is 24.3 mm long, 19.6 mm tall and 24.15 mm deep. It uses the solder termination method.
Allied Electronics:
Spring PCB Terminal Block, Horizontal, 7.5mm pitch, 3 position
Verical:
Conn PC Terminal Block 3 POS 7.5mm Solder RA Thru-Hole 41A Cardboard
MASTER:
PCB terminal block - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² - pitch: 7.5 mm - number of positions: 3 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection directi
Online Components:
Conn PC Terminal Block 3 POS 7.5mm Solder RA Thru-Hole 41A
Electro Sonic:
PCB terminal block - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² ...
