固定接线端子 12P 3.81mm 90 DEG
12 接线板 - 线至板 水平,带板 0.150"(3.81mm) 通孔
得捷:
TERM BLK 12P SIDE ENT 3.81MM PCB
贸泽:
固定接线端子 12P 3.81mm 90 DEG
艾睿:

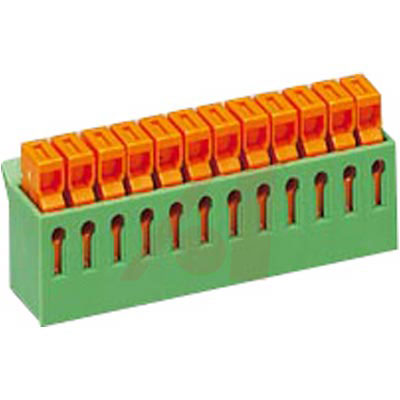

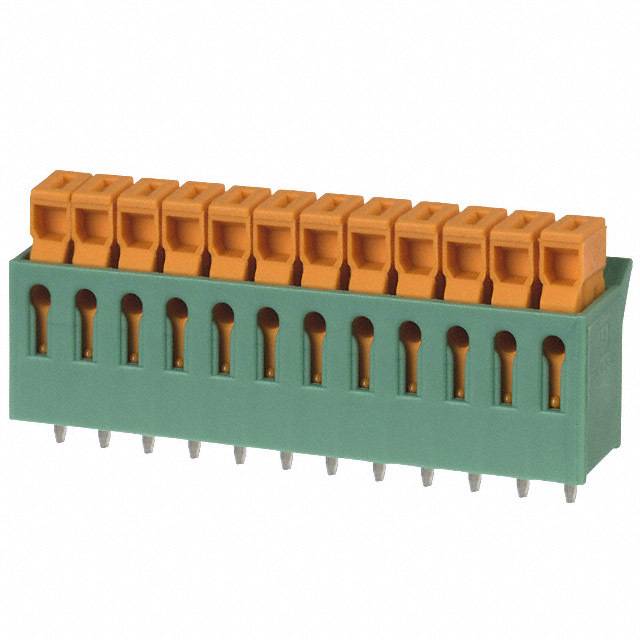

This 1706277 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. It has a straight body orientation. It has a maximum voltage rating of 160 V. Its pitch is 3.81 mm. This is a 1-row connector. This device has a maximum current rating of 5 A. 1706277 is housed in polyamide. This product is 46.91 mm long, 14.8 mm tall and 12.4 mm deep. Its wire is 22-26 AWG. It uses the solder termination method.
Allied Electronics:
Conn; Term Blk; PCB; Ins. Displacement; 12; 3.81mm; 26-22 AWG; Green; 5 A; 160 V
MASTER:
PCB terminal block - nominal current: 5 A - rated voltage III/2: 160 V - nominal cross section: 0.34 mm² - pitch: 3.81 mm - number of positions: 12 - connection method: Displacement connection - mounting: Wave soldering - conductor/PCB connection direct
Online Components:
Conn Terminal Block 12 POS 3.81mm Solder ST Thru-Hole 5A
Electro Sonic:
PCB terminal block - nominal current: 5 A - rated voltage III/2: 160 V - nominal cross section: 0.34 mm² ...
触点数 12
线规 22AWG ~ 28AWG
额定电流 5 A
排数 1
电路数 12
易燃性等级 UL 94 V-0
针脚数 12
额定电流Max 5 A
额定电压Max 160 V
额定电压 160 V
安装方式 Through Hole
引脚间距 3.81 mm
长度 46.91 mm
宽度 12.4 mm
高度 14.8 mm
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
触点材质 Copper
绝缘材质 Nylon
外壳材质 Nylon
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
