1751361

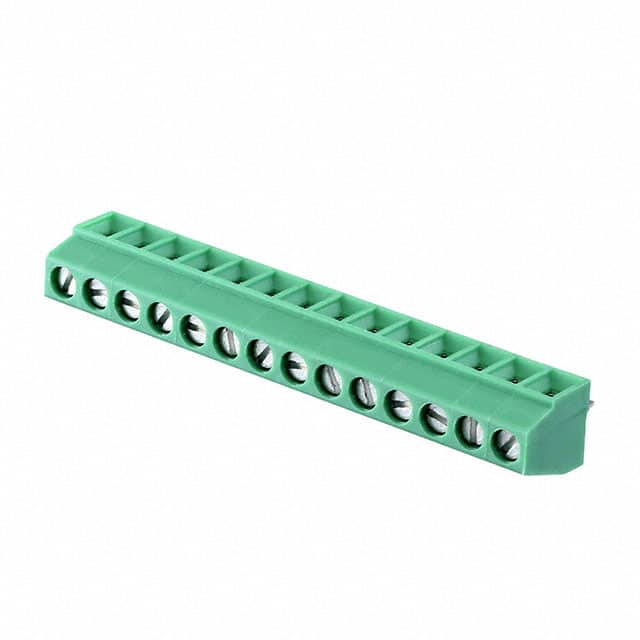

Phoenix Contact COMBICON MKDS 系列 3.5mm 节距 14 路 绿色 印刷电路板接线端子块 1751361, 通孔

Conn PC Terminal Block 14 POS 3.5mm Solder ST Thru-Hole 13.5A

得捷:
TERM BLK 14P SIDE ENT 3.5MM PCB

欧时:
Phoenix Contact 1751361 COMBICON MKDS 系列 3.5mm 节距 14 路 印刷电路板接线端子块, 通孔, 螺钉端接

艾睿:
Need to ensure strong connections between circuits? This pc terminal block 1751361 PCB terminal block from Phoenix Contact will do just that! Its pitch is 3.5 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 200 V. This device has a maximum current rating of 13.5 A. 1751361 is housed in polyamide. It uses the solder termination method. This product is 49.5 mm long, 8.5 mm tall and 7.3 mm deep. Its wire is 16-26 AWG.

Verical:
Conn PC Terminal Block 14 POS 3.5mm Solder ST Thru-Hole 13.5A

MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 14 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB con

Online Components:
Conn PC Terminal Block 14 POS 3.5mm Solder ST Thru-Hole 13.5A

Electro Sonic:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² ...
