1751170

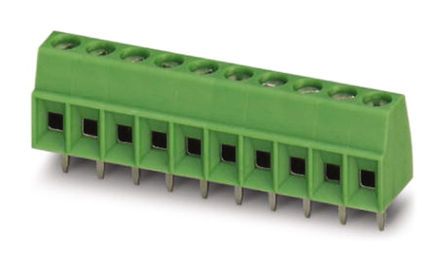

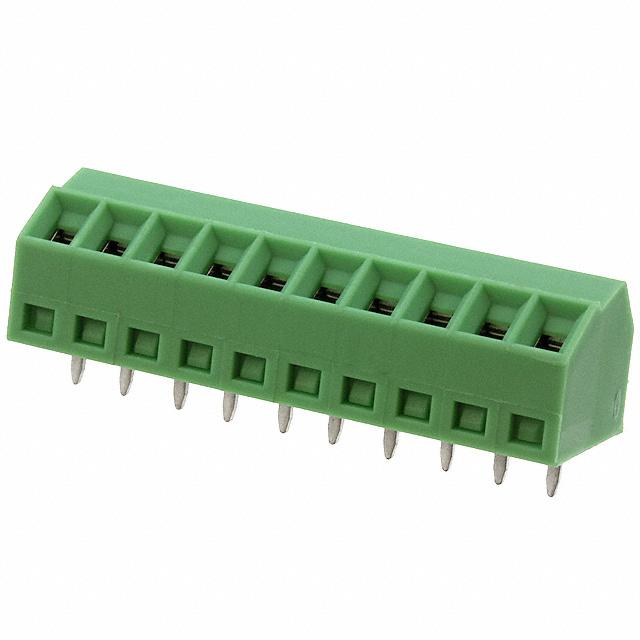

Phoenix Contact COMBICON SMKDS 系列 3.5mm 节距 10 路 绿色 印刷电路板接线端子块 1751170, 通孔

Conn PC Terminal Block 10 POS 3.5mm Solder Thru-Hole 12A

得捷:
TERM BLOCK 10POS 55DEG 3.5MM PCB

欧时:
Phoenix Contact 1751170 COMBICON SMKDS 系列 3.5mm 节距 10 路 印刷电路板接线端子块, 通孔, 螺钉端接

艾睿:
Get the best connections between your circuits with this pc terminal block 1751170 PCB terminal block from Phoenix Contact. It has a maximum voltage rating of 160 V. Its pitch is 3.5 mm. This is a 1-row connector. 1751170 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 16-26 AWG. This product is 35.5 mm long, 9.5 mm tall and 10 mm deep. It uses the solder termination method.

Verical:
Conn PC Terminal Block 10 POS 3.5mm Solder Thru-Hole 10A

MASTER:
PCB terminal block - nominal current: 10 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² - pitch: 3.5 mm - number of positions: 10 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connect

Online Components:
Conn PC Terminal Block 10 POS 3.5mm Solder Thru-Hole 12A

Electro Sonic:
PCB terminal block - nominal current: 10 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² ...
