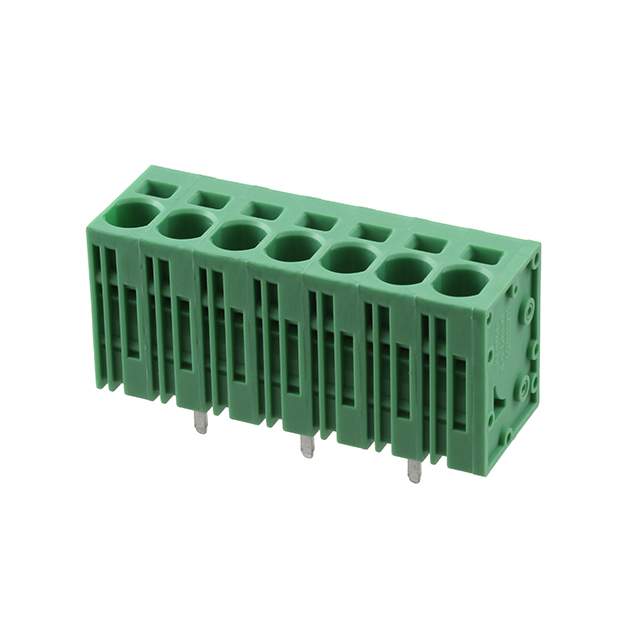

Phoenix Contact COMBICON SPT 系列 7.5mm 节距 7 路 母 绿色 印刷电路板接线端子块 1719367, 通孔
Conn PC Terminal Block 7 POS 7.5mm Solder ST Thru-Hole 41A
得捷:
TERM BLK 7P TOP ENTRY 7.5MM PCB
欧时:
PCB Terminal Block 1719367
艾睿:
Keep your connections strong with this pc terminal block 1719367 PCB terminal block from Phoenix Contact utilizing clamps and screws. It has a straight body orientation. It has a maximum voltage rating of 630 V. Its pitch is 7.5 mm. This is a 1-row connector. This device has a maximum current rating of 41 A. 1719367 is housed in polyamide. This product is 54.3 mm long, 24.15 mm tall and 18.5 mm deep. It uses the solder termination method. Its wire is 8-24 AWG.
MASTER:
PCB terminal block - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² - pitch: 7.5 mm - number of positions: 7 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection directi
Online Components:
Conn PC Terminal Block 7 POS 7.5mm Solder ST Thru-Hole 41A
Electro Sonic:
PCB terminal block - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² ...
