1790364

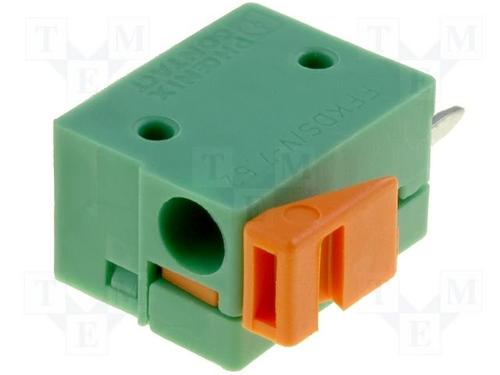

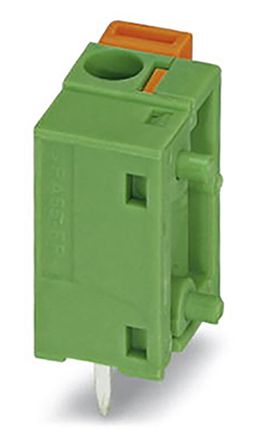

Phoenix Contact COMBICON FFKDS 系列 7.62mm 节距 1 路 母 绿色 印刷电路板接线端子块 1790364, 通孔

1 接线板 - 线至板 垂直，带板 - 通孔

得捷:
TERM BLK 1POS TOP ENTRY PCB 10PC

欧时:
FFKDSA/V1-7,62

贸泽:
固定接线端子 FFKDSA/V1-7 62

艾睿:
Never worry about wires becoming undone by implementing this spring cage 1790364 PCB terminal block developed by Phoenix Contact. This is a 1-row connector. It has a maximum voltage rating of 500 V. It has a right angle body orientation. This device has a maximum current rating of 17.5 A. 1790364 is housed in polyamide. Its wire is 16-24 AWG. It uses the solder termination method. This product is 7.62 mm long, 13.6 mm tall and 12.7 mm deep.

Verical:
Conn PC Terminal Block 1 POS Solder RA Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 630 V - nominal cross section: 1.5 mm² - pitch: 7.62 mm - number of positions: 1 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection dir

Online Components:
Conn Spring Cage 1 POS Solder RA Thru-Hole 17.5A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 630 V - nominal cross section: 1.5 mm² ...
