1932614

固定接线端子 MKDSP 25/5-15.00 5 POS 15.00mm

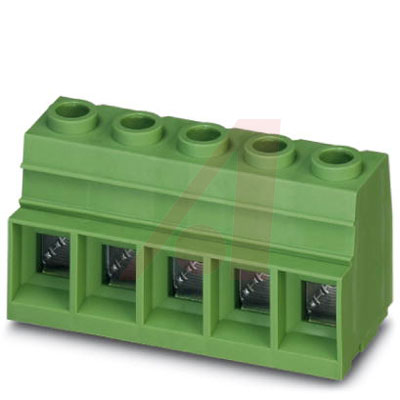

Printed Circuit Terminal Block, Soldering Mount, Screw Type Connection

Sturdy housings with an extremely precise pitch.

There are four solder pins per position to ensure not only high current capacity of 125 A, but also serve to securely anchor the terminal block to the printed circuit board.

* Polyamide Insulating Material

* Voltage: 600, Amps: 125, AWG: 20-2

* Screw Connection Blocks

得捷:
TERM BLK 5P SIDE ENTRY 15MM PCB

贸泽:
固定接线端子 MKDSP 25/5-15.00 5 POS 15.00mm

艾睿:
Conn PC Terminal Block 5 POS 15mm Solder ST Thru-Hole 125A

Allied Electronics:
Conn; Term Blk; PCB; Screw; 5; 15.0mm; Front; 20-2 AWG; 125A; 1000V; 1.6 mm; M 5

MASTER:
PCB terminal block - nominal current: 125 A - rated voltage III/2: 1000 V - nominal cross section: 35 mm² - pitch: 15 mm - number of positions: 5 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn PC Terminal Block 5 POS 15mm Solder ST Thru-Hole 125A

Electro Sonic:
PCB terminal block - nominal current: 125 A - rated voltage III/2: 1000 V - nominal cross section: 35 mm² ...
