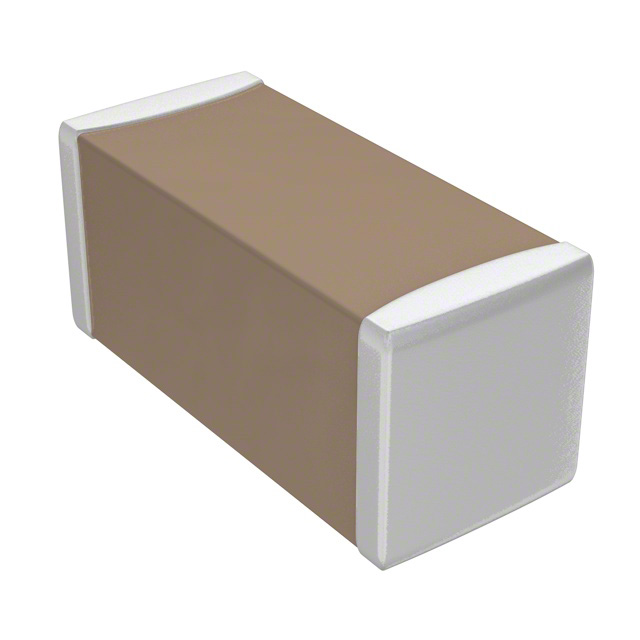

AVX 1808HA180JAT1A 多层陶瓷电容器, 表面贴装, 高电压, 18 pF, ± 10%, C0G / NP0, 3 kV, 1808 [4520 公制]
The is a surface-mount SMT high-voltage Multilayer Ceramic Capacitor with Ni and Sn plated terminations. High value, low leakage and small size are difficult parameters to obtain in capacitor for high voltage systems. special high voltage MLC chip capacitor meets these performance characteristics and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking. This high voltage chip design exhibits low ESRs at high frequencies. Larger physical sizes than normally encountered chip is used to make high voltage MLC chip products.
Special precautions must be taken in applying this chip in surface mount assemblies.
额定电压DC 3000 V
电容 18 pF
容差 ±10 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 3 kV
安装方式 Surface Mount
引脚数 2
封装公制 4520
封装 1808

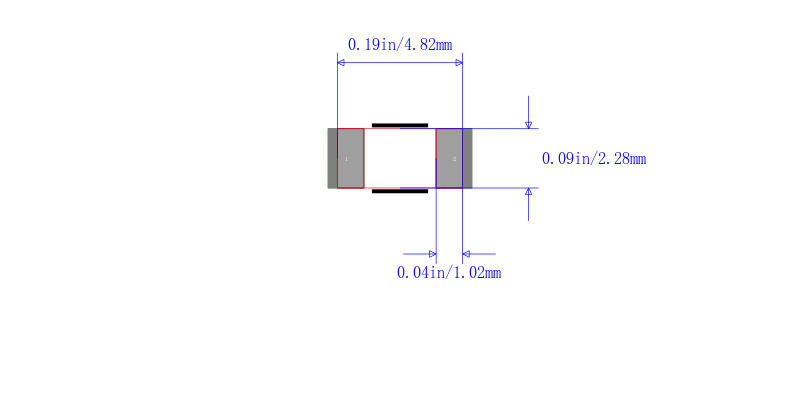

长度 4.57 mm
宽度 0.08 in
高度 1.448 mm
封装公制 4520
封装 1808
材质 C0G/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 2000
制造应用 Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1808HA180JAT1A AVX 艾维克斯 | 当前型号 | 当前型号 |
C1808C180JHGACTU 基美 | 功能相似 | 1808HA180JAT1A和C1808C180JHGACTU的区别 |
1808HA180JA11A 艾维克斯 | 功能相似 | 1808HA180JAT1A和1808HA180JA11A的区别 |
