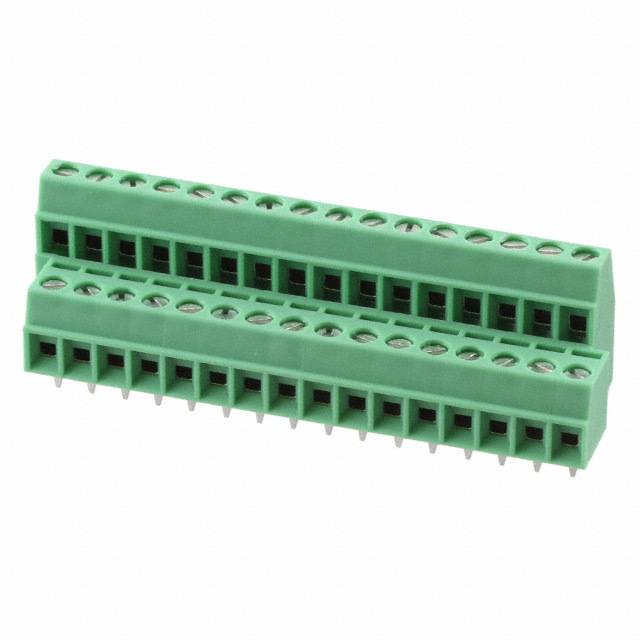

Phoenix Contact COMBICON MKKDS 系列 3.5mm 节距 16 路 绿色 印刷电路板接线端子块 1751536, 通孔
16 接线板 - 线至板 水平，带板 0.138"（3.50mm） 通孔
得捷:
TERM BLK 16P SIDE ENT 3.5MM PCB
欧时:
Phoenix Contact 1751536 COMBICON MKKDS 系列 3.5mm 节距 16 路 印刷电路板接线端子块, 通孔, 螺钉端接
艾睿:
Never worry about wires becoming undone by implementing this pc terminal block 1751536 PCB terminal block developed by Phoenix Contact. This is a 2-row connector. It has a maximum voltage rating of 160 V. It has a straight body orientation. Its pitch is 3.5 mm. 1751536 is housed in polyamide. This device has a maximum current rating of 10 A. It uses the solder termination method. Its wire is 16-26 AWG. This product is 58.25 mm long, 16.2 mm tall and 16.3 mm deep.
Verical:
Conn PC Terminal Block 32 POS 3.5mm Solder ST Thru-Hole 8A
MASTER:
PCB terminal block - nominal current: 8 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² - pitch: 3.5 mm - number of positions: 16 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti
Online Components:
Conn PC Terminal Block 32 POS 3.5mm Solder ST Thru-Hole 10A
Electro Sonic:
PCB terminal block - nominal current: 8 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² ...
