1840557

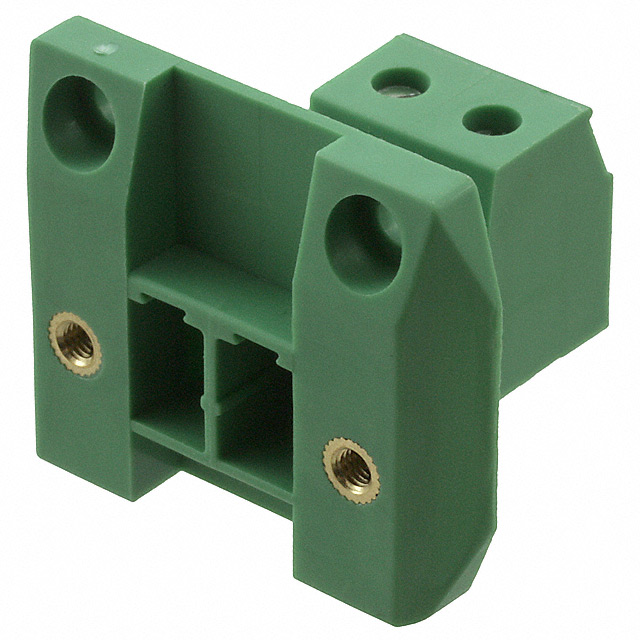

Phoenix Contact DFK-PC 系列 1行 2路 7.62mm节距 印刷电路板管座 1840557, 螺钉端接

2 接线板 - 面板安装接头，公引脚 绿色

得捷:
TERM BLK HEADER 2POS GREEN

欧时:
DFK-PC 4/ 2-GF-7,62

艾睿:
Say goodbye to wires becoming undone by using this 1840557 PCB terminal block developed by Phoenix Contact. This F connector has 2 F contacts. It has a maximum voltage rating of 400 V. It has a right angle body orientation. It has a female type gender. This is a 1-row connector. Its pitch is 7.62 mm. This device has a maximum current rating of 20 A. 1840557 is housed in polyamide. This product is 37.02 mm long, 30.5 mm tall and 32 mm deep. It uses the screw termination method. Its wire is 10-24 AWG.

Allied Electronics:
Plug component; 20A; 630 V; Pos: 2; Screw conn; green

Verical:
Conn Feed-Through Terminal Block M 2 POS 7.62mm Screw RA Cable Mount 20A

MASTER:
Feed-through connector - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - number of positions: 2 - pitch: 7.62 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - mounti

Online Components:
Conn Terminal Block F 2 POS 7.62mm Screw RA Wall Mount 20A

Electro Sonic:
Feed-through connector - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - ...
