1840586

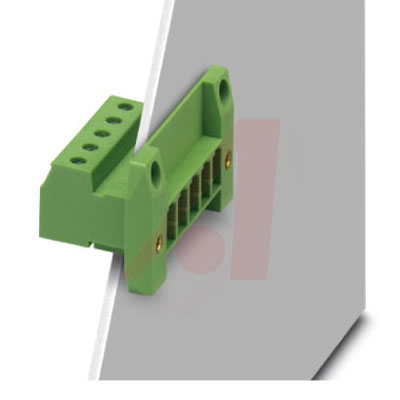

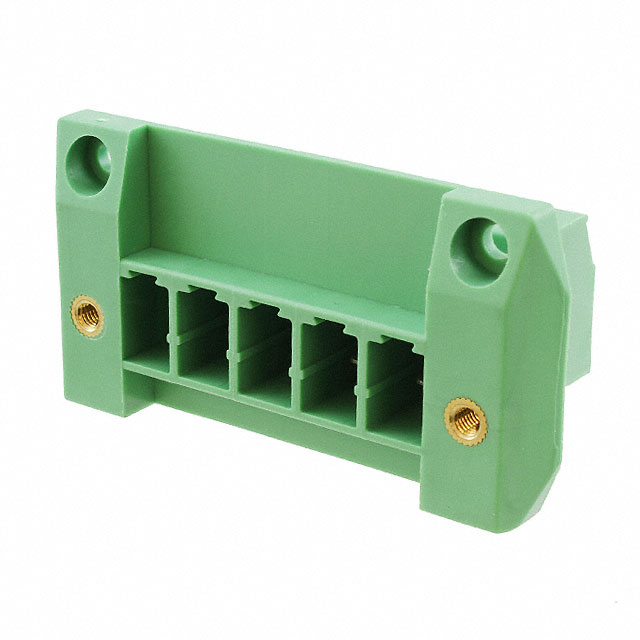

Conn Terminal Block F 5POS 7.62mm Screw RA Wall Mount 20A

5 Position Terminal Block Header, Male Pins Green

得捷:
TERM BLK HEADER 5POS GREEN

艾睿:
Say goodbye to wires becoming undone by using this 1840586 PCB terminal block developed by Phoenix Contact. This F connector has 5 contacts that are plated with tin. It has a maximum voltage rating of 630 V. It has a right angle body orientation. Its pitch is 7.62 mm. It has a female type gender. This is a 1-row connector. This device has a maximum current rating of 20 A. 1840586 is housed in polyamide. Its wire is 10-24 AWG. It uses the screw termination method. This product is 59.72 mm long, 30.5 mm tall and 32 mm deep.

Allied Electronics:
Plug Component; Base Strip; 20A; 630V; 5 Pos.; Screw Conn
