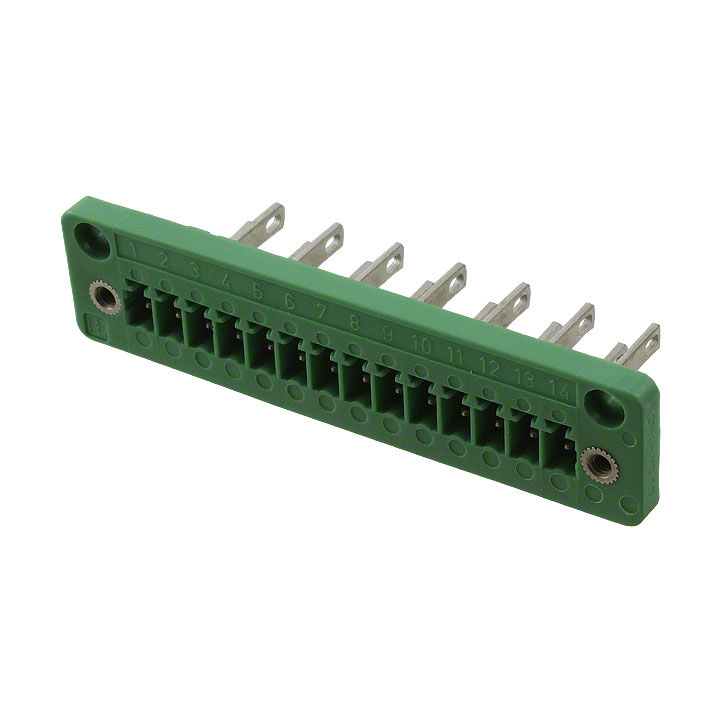

Phoenix Contact DFK 系列 3.81mm 节距 14 路 针座 1829455, 焊接/滑扣端接
接线板 - 面板安装接头，公引脚 绿色
得捷:
TERM BLK HEADER 14POS GREEN
欧时:
Phoenix Contact DFK 系列 3.81mm 节距 14 路 针座 1829455, 焊接/滑扣端接
贸泽:
Pluggable Terminal Blocks 14 Pos 3.81mm pitch Feed Through Header
艾睿:
Think of Phoenix Contact&s;s wire to wire 1829455 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector has 14 contacts that are plated with tin. It has a straight body orientation. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.81 mm. It has a header type gender. This device has a maximum current rating of 8 A. It uses the solder lug termination method. 1829455 is housed in polyamide. This product is 67.73 mm long, 16.2 mm tall and 20.4 mm deep.
Verical:
Conn Wire to Wire HDR 14 POS 3.81mm Solder Lug ST Wall Mount
MASTER:
Feed-through header - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 14 - pitch: 3.81 mm - connection method: Solder/Slip-on connection - color: green - contact surface: Tin - mounting: Direct m
Online Components:
Conn Wire to Wire HDR 14 POS 3.81mm Solder Lug ST Wall Mount
Electro Sonic:
Feed-through header - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
