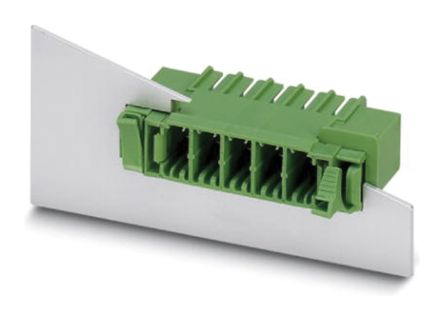

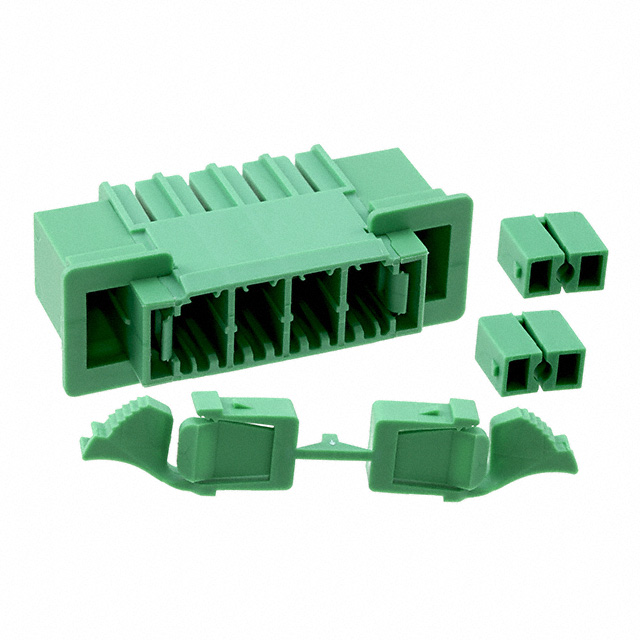

Phoenix Contact PCB 接线端子块 COMBICON DFK-PC 系列 4路 7.62mm节距 1727605, 焊接端接, 41A
4 Position Terminal Block Header, Male Pins Green
欧时:
Phoenix Contact PCB 接线端子块 COMBICON DFK-PC 系列 4路 7.62mm节距 1727605, 焊接端接, 41A
得捷:
TERM BLK HDR 4POS 2PC SNAP GREEN
艾睿:
Mount this wire to board 1727605 header connector from Phoenix Contact on a jumper post on your PCB to support physical configuration options. This HDR connector has 4 contacts that are plated with tin. It has a right angle body orientation. It has a maximum voltage rating of 630 V. This is a 1-row connector. It has a header type gender. Its pitch is 7.62 mm. This device has a maximum current rating of 41 A. It uses the solder termination method. This product is 55.98 mm long, 19.54 mm tall and 41.65 mm deep. 1727605 is housed in green polyamide.
Verical:
Conn Wire to Board HDR 4 POS 7.62mm Solder RA Wall Mount
MASTER:
Feed-through header - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - number of positions: 4 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin
Electro Sonic:
Feed-through header - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - ...
