可插拔接线端子 3 Pos 7.62mm pitch Feed Through Header
3 接线板 - 面板安装接头，公引脚 绿色
得捷:
TERM BLK HEADER 3POS GREEN
贸泽:
可插拔接线端子 3 Pos 7.62mm pitch Feed Through Header
艾睿:

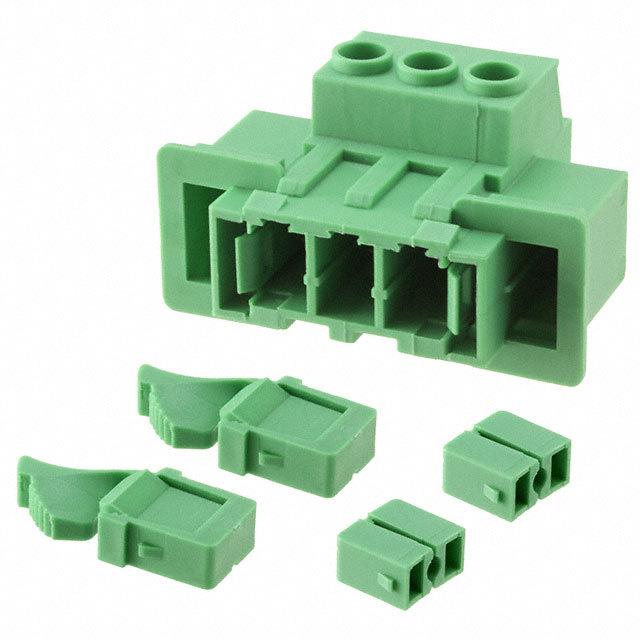

Get the best connections between your circuits with this 1716519 PCB terminal block from Phoenix Contact. This F connector has 3 F contacts. Its pitch is 7.62 mm. It has a right angle body orientation. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 1000 V. This device has a maximum current rating of 41 A. 1716519 is housed in polyamide. Its wire is 10-24 AWG. This product is 48.36 mm long, 26.24 mm tall and 48.95 mm deep. It uses the screw termination method.
Allied Electronics:
PCB Connector; 41A; 1000V; 3 Pos; ScrewConn; DFK-PC 5/3-ST-7, 62
MASTER:
Feed-through connector - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² - number of positions: 3 - pitch: 7.62 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 3 POS 7.62mm Screw RA Wall Mount 41A
Electro Sonic:
Feed-through connector - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² - ...
