1624048-2

Inductor Power Shielded Wirewound 220nH 10% 25MHz 33Q-Factor 1.12A 140mOhm DCR AXL Ammo

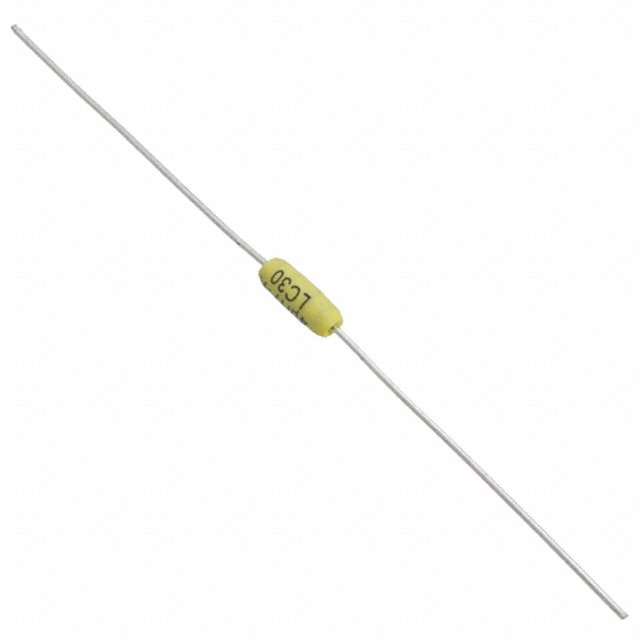

This power leaded inductor from is constructed on a core with concentric leads on opposite ends of the core. This leaded inductor has an operating temperature range of -55 °C to 100 °C. It has a tolerance of 10%. This product is 7 mm long with a diameter of 2.8 mm. It has an inductance of 220n H. This device utilizes wirewound technology. This leaded inductor has a maximum DC current of 1.12 A with a maximum resistance of 140m Ohm. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 510M Hz.
