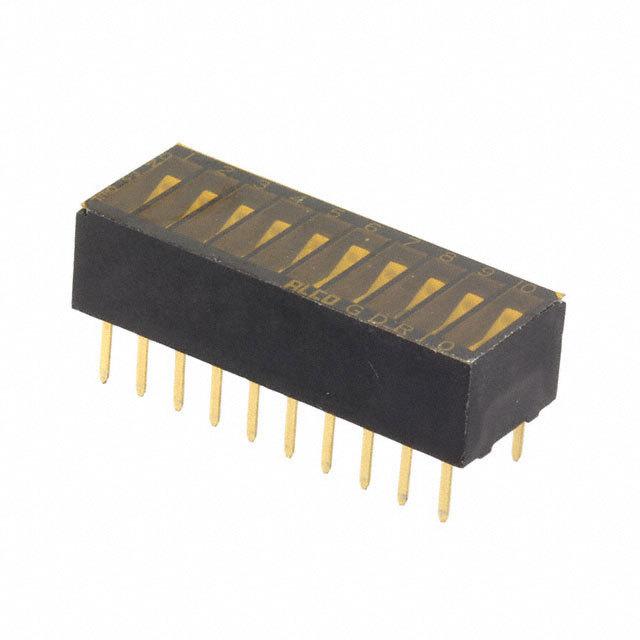

1825286-9

Switch DIP ON OFF SPST 10 Recessed Rocker 0.025A 24VDC PC Pins 2.54mm Thru-Hole

Thanks to the dual in-line package switch from , you can ensure that there is some type of current flow control within your printed circuit. It has a SPST configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has an operating temperature range of -30 °C to 85 °C. The 1825286-9 DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product"s terminal pitch is 2.54 mm. This product is 26.37 mm long, 6.86 mm tall and 9.6 mm deep.
