AC-DC Power Supply Single-OUT 1V to 30V 30A

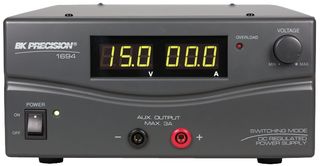

The B&K Precision switching mode DC power supply provides high current output in a lightweight and compact package. It is suitable for a variety of uses, especially for powering DC operated mobile radio equipment on the bench. Voltage output is variable from 1 V to 30 V at 30 A continuous operation. In addition, a remote sensing terminal is available for use to compensate for voltage drop across load leads. The output voltage level can also be externally controlled via an analog remote control terminal. Bright red and green LED displays provide for an accurate and highly readable indicator of settings.
* Lightweight and Compact
* Current Fold Back Circuitry with Illuminated Indicator Prevents Overloading the Power Supply
* Overtemperature Protection Circuitry
* Overvoltage Protection
额定功率 900 W
输出接口数 1
输出电压 1VDC ~ 30VDC
输出电流 30 A
输出电压Max 30 V
输出电压Min 1 V
输出电流Max 30 A
工作温度Max 40 ℃
工作温度Min 0 ℃
电源电压 100VAC ~ 240VAC
电源电压Max 240 VAC
电源电压Min 100 VAC
输入电压 100VAC ~ 240VAC
长度 360 mm
宽度 220 mm
高度 110 mm
重量 5.9 kg
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
