1812 1uF ±20% 100V X7R
1µF ±20% 100V Ceramic Capacitor X7R 1812 4532 Metric
得捷:
CAP CER 1UF 100V X7R 1812
艾睿:

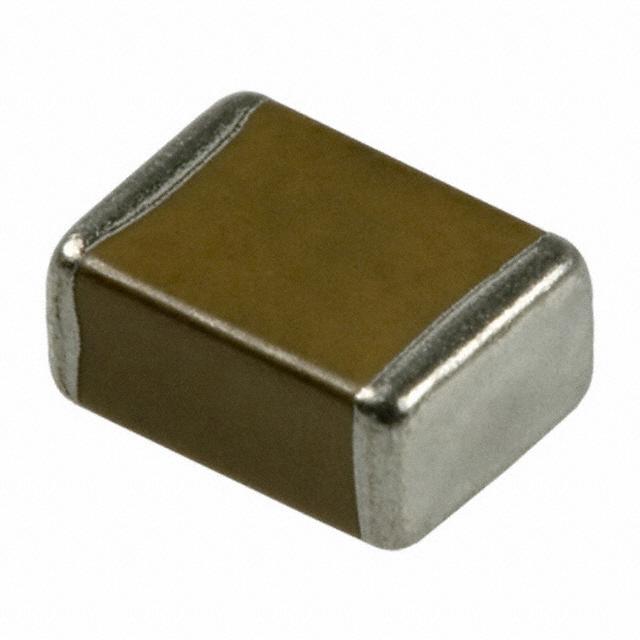

You can use multiple capacitors of different parameters choosing this 18121C105MAT2A multilayer ceramic capacitor from AVX! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 4.5 mm long, 2.29Max mm tall and 3.2 mm deep. Its capacitance value is 1uF. It has a tolerance of 20%.
Verical:
Cap Ceramic 1uF 100V X7R 20% Pad SMD 1812 125C T/R
Newark:
# AVX 18121C105MAT2A SMD Multilayer Ceramic Capacitor, 1812 [4532 Metric], 1 µF, 100 V, ± 20%, X7R
Win Source:
CAP CER 1UF 100V X7R 1812 / 1 µF ±20% 100V Ceramic Capacitor X7R 1812 4532 Metric
额定电压DC 100 V
电容 1 µF
容差 ±20 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
引脚数 2
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 2.29 mm
封装公制 4832
封装 1812
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
18121C105MAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
18121C105MAZ2A 艾维克斯 | 完全替代 | 18121C105MAT2A和18121C105MAZ2A的区别 |
C4532X7R2A105M 东电化 | 完全替代 | 18121C105MAT2A和C4532X7R2A105M的区别 |
18121C105M4Z2A 艾维克斯 | 完全替代 | 18121C105MAT2A和18121C105M4Z2A的区别 |
