1608100概述

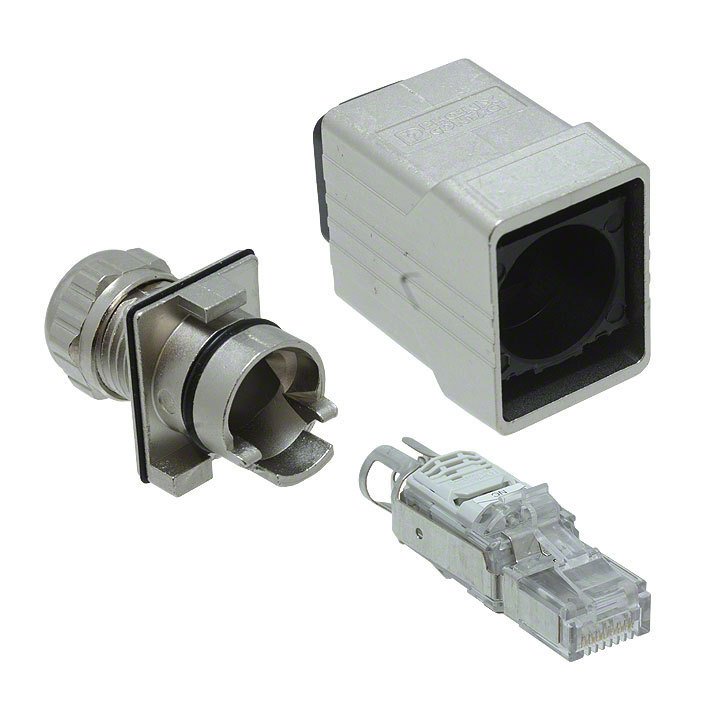

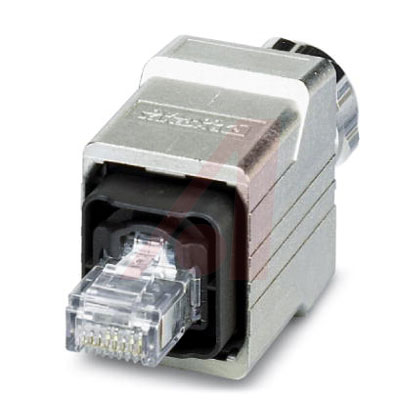

模块式连接器/以太网连接器 VS-PPC-C1-RJ45-MNNA CAT5 PUSH-PULL IP67

Push-Pull connectors provide IP65 and IP67 protection to withstand harsh industrial environments, making them ideal for distributed control applications. The Push-Pull connector system is easy to operate - connectors are locked and unlocked with just one hand. These connectors protect against dirt, water, vibration/shock, and temperature extremes.


欧时:
RJ45 Connector Push/Pull 4 position IP67


得捷:
CONN MOD PLUG 8P4C SHIELDED


贸泽:
模块式连接器/以太网连接器 VS-PPC-C1-RJ45-MNNA CAT5 PUSH-PULL IP67


Allied Electronics:
Cat5, Cat5e RJ45 Connector, STP, Straight, Cable Mount


Electro Sonic:
RJ45 connector - degree of protection: IP65/IP67 - number of positions: 4 - 100 Mbps - CAT5 IEC 11801:2002 - ...


1608100中文资料参数规格
技术参数

触点数 4

触点电镀 Gold

排数 4

额定电流Max 1.75 A

工作温度Max 70 ℃

工作温度Min -40 ℃

额定电压Max 72 VDC

外形尺寸

长度 68.80 mm

物理参数

颜色 Silver

触点材质 Copper

工作温度 -40℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1608100
型号: 1608100
描述:模块式连接器/以太网连接器 VS-PPC-C1-RJ45-MNNA CAT5 PUSH-PULL IP67
