AMP FROM TE CONNECTIVITY 1-338088-3 模块连接器, Cat3, RJ45, 插座, 8 触点, 8 路, 1 端口

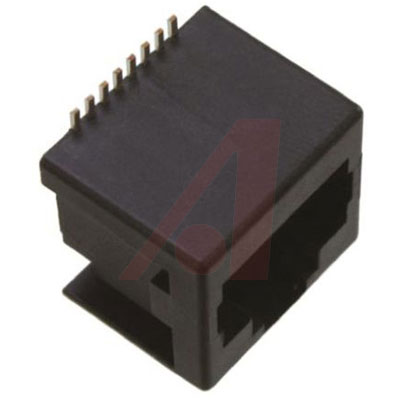

The is a 8P8C 1-port Cat3 unshielded surface mount RJ45 Modular Jack with top entry. It meets 1000V dielectric requirement contact to contact and designed for direct mounting on pc boards. It has phosphor bronze plated with gold in contact area and tin-lead on solder tails over nickel under-plate contacts, polyester, polyphenylene sulphide or high temperature nylon material and finish housing.
- .
- Designed for ease of soldering and board cleaning
- .
- 20dB shielding effectiveness from 30 to 400MHz
- .
- UL94V-0 Flammability
- .
- 150VAC Voltage rating
- .
- 1.5A Current rating maximum
- .
- 750 Mating cycles durability
触点数 8
极性 Male
触点电镀 Nickel, Tin
额定电压DC 150 V
额定电流 1.50 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 8
屏蔽 No
额定电流Max 1.5A/触头
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压Max 150 VAC
安装方式 Surface Mount
引脚数 8
封装 SMD
长度 15.55 mm
宽度 14 mm
高度 12.7 mm
封装 SMD
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Computers & Computer Peripherals, 通信与网络, Communications & Networking, Signal, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536698000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1-338088-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-338088-6 泰科 | 完全替代 | 1-338088-3和1-338088-6的区别 |
85513-5013 莫仕 | 功能相似 | 1-338088-3和85513-5013的区别 |
