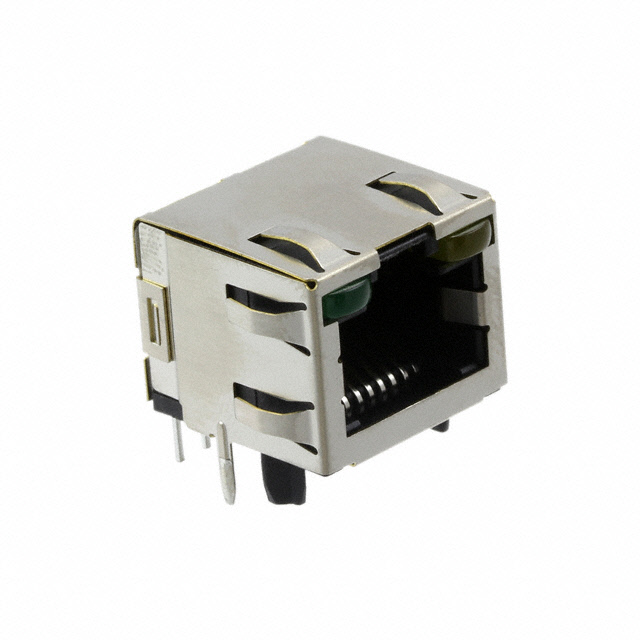

1116173-4

模块式连接器/以太网连接器 INVERTED M/JK ASSY 8POS,SHLD

INVERTED M/JK ASSY,8POS,SHLD

Product Highlights

Jack

Single Port Configuration

1 x 1 Jack Configuration

Jack Type = RJ45

Number of Positions = 8

得捷:
CONN MOD JACK 8P8C R/A SHIELDED

贸泽:
模块式连接器/以太网连接器 INVERTED M/JK ASSY 8POS,SHLD

艾睿:
This rj-45 1116173-4 telephone and telecom connector from TE Connectivity is the perfect connector for high-power applications. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.04 mm. It has a right angle body orientation. It has a maximum voltage rating of 150 VAC. It has a female type gender. This connector has a single port. The component will be shipped in tray format. It uses the solder termination method. 1116173-4 is housed in black thermoplastic. This part has an operating temperature of -40 to 70 °C. This product is 18.64 mm long, 13.34 mm tall and 15.75 mm deep.

Chip1Stop:
Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 12 Terminal 1 Port Tray Cat 5

Verical:
Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 12 Terminal 1 Port Cat 5 Box/Tray

MASTER:
Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 12 Terminal 1 Port Cat 5 Box/Tray

Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked

Online Components:
INVERTED M/JK ASSY,8POS,SHLD

Electro Sonic:
Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 12 Terminal 1 Port Cat 5 Box/Tray
