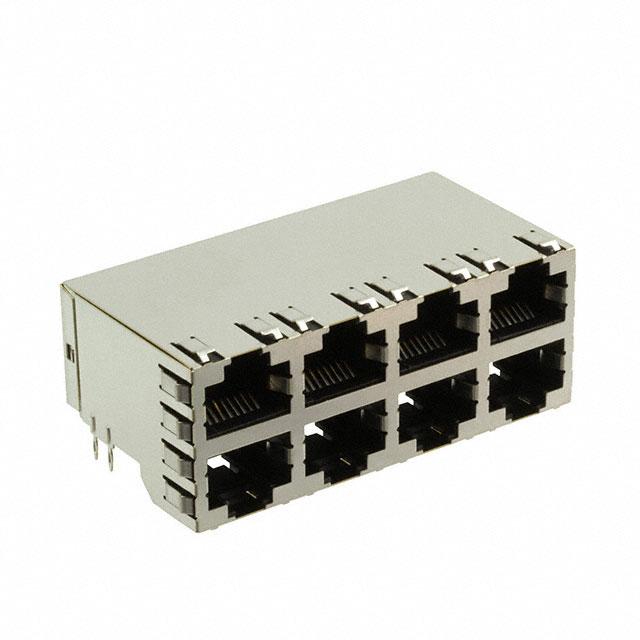

1888506-1

Conn RJ-45F 64POS 2.03mm Press Fit RA Thru-Hole 64 Terminal 8Port Cat 5e

模块化 - 插孔 8p8c（RJ45，以太网） 90°角（直角） 屏蔽式，EMI指 Cat5e

得捷:
CONN MOD JACK 8P8C R/A SHIELDED

艾睿:
This rj-45 1888506-1 telephone and telecom connector from TE Connectivity is perfect for high-speed signals. This F connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has 8 ports. It has a female type gender. It has a maximum voltage rating of 150 VAC. It has a right angle body orientation. Its pitch is 2.03 mm. This device has a maximum current rating of 1.5 A/contact. This product is 59.82 mm long, 29.73 mm tall and 31.06 mm deep. 1888506-1 is housed in black polybutylene terephthalate. It uses the press fit termination method. This part has an operating temperature of -40 to 70 °C.

安富利:
Conn RJ-45 F 64 POS 2.03mm Press Fit RA Thru-Hole 64 Terminal 8 Port Cat 5e

Chip1Stop:
Conn RJ-45 F 64 POS 2.03mm Press Fit RA Thru-Hole 64 Terminal 8 Port Cat 5e Tray

Verical:
Conn RJ-45 F 64 POS 2.03mm Press Fit RA Thru-Hole 64 Terminal 8 Port Cat 5e Frame

MASTER:
STACKED MOD JACK ASSEMBLY, 2 X 4, 8 POSN, RJ45, SHIELDED, PANEL GROUND, OFFSET,

Powell:
Ethernet & Telecom Connectors 2X4 OFFSET,SHLD, RJ45,STJK ASSY

Online Components:
2X4 OFFSET,SHLD,RJ45,STJK ASSY

Electro Sonic:
2X4 OFFSET,SHLD,RJ45,STJK ASSY
