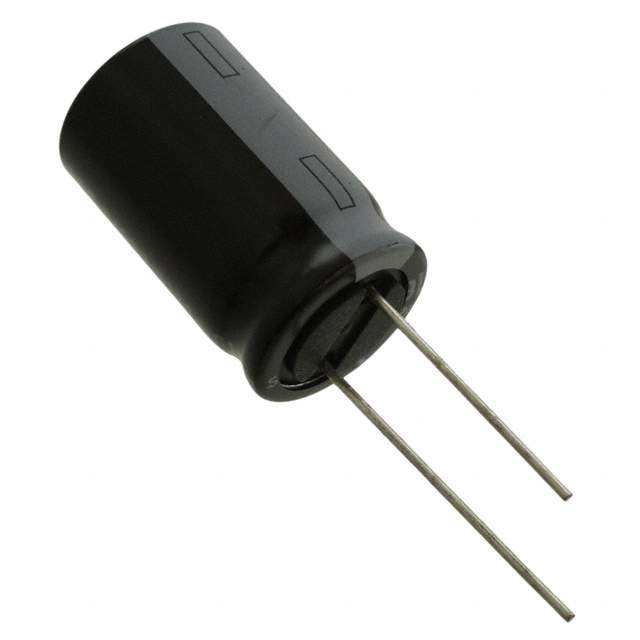

RUBYCON 16PX10000MEFC16X31.5 铝电解电容, 微型, PX系列, 10000 µF, ± 20%, 16 V, 16 mm, 径向引线
The is a miniature aluminium Electrolytic Capacitor with radial leaded terminals and PET sleeve. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- 1950mA RMS at 120Hz/105°C Rated ripple current
额定电压DC 16.0 V
电容 10000 µF
容差 ±20 %
纹波电流 1950 mA
纹波电流高频 1.95A @120Hz
纹波电流低频 2.2425A @10kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2

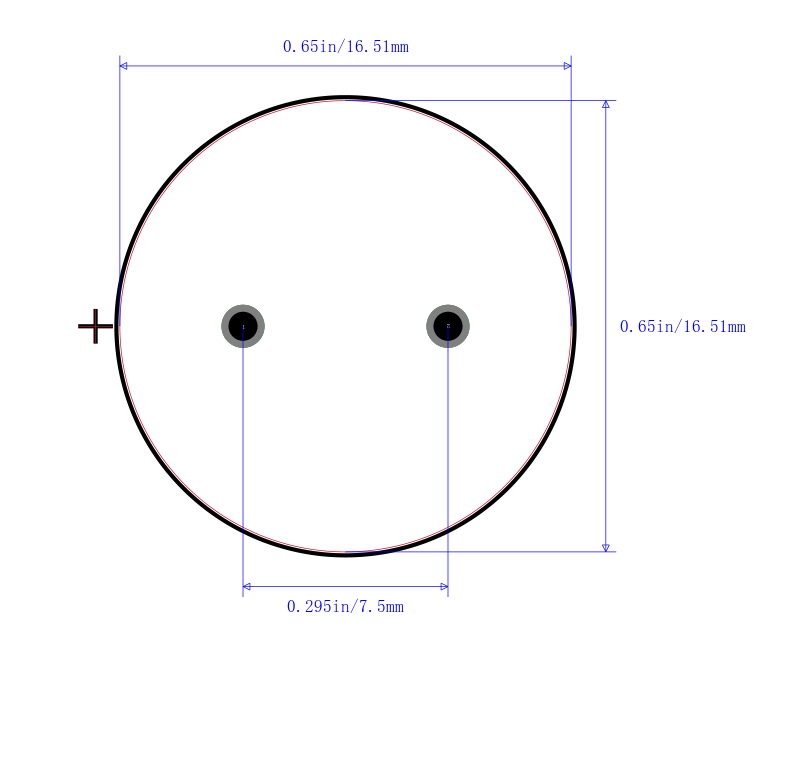

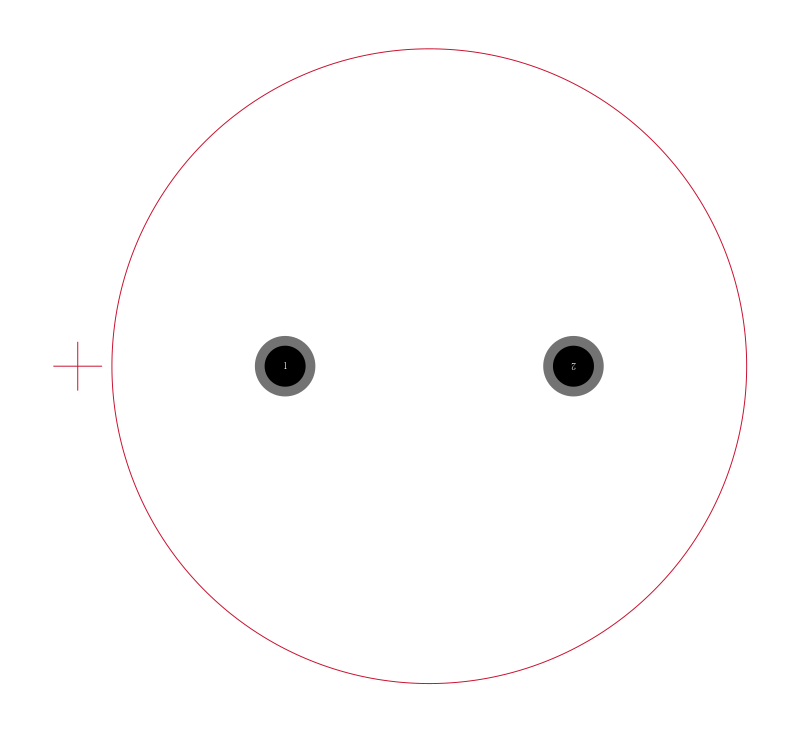

封装 Radial, CAN
引脚间距 7.5 mm
高度 31.5 mm
直径 16.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Each
最小包装 200
寿命（小时） 2000h @105℃
制造应用 通用, Multimedia, Computers & Computer Peripherals, Aerospace, Defence, Military, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
16PX10000MEFC16X31.5 Rubycon | 当前型号 | 当前型号 |
EEU-HD1C103 松下 | 功能相似 | 16PX10000MEFC16X31.5和EEU-HD1C103的区别 |
EEUHD1C103 松下 | 功能相似 | 16PX10000MEFC16X31.5和EEUHD1C103的区别 |
ESMG160ELL103MMP1S 贵弥功 | 功能相似 | 16PX10000MEFC16X31.5和ESMG160ELL103MMP1S的区别 |
