110-93-632-41-001000

插座, DIP 插座, 32路, 通孔

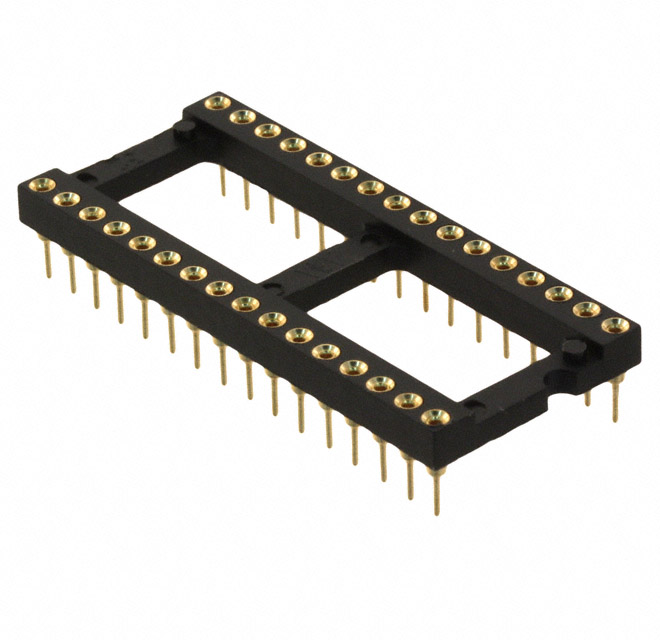

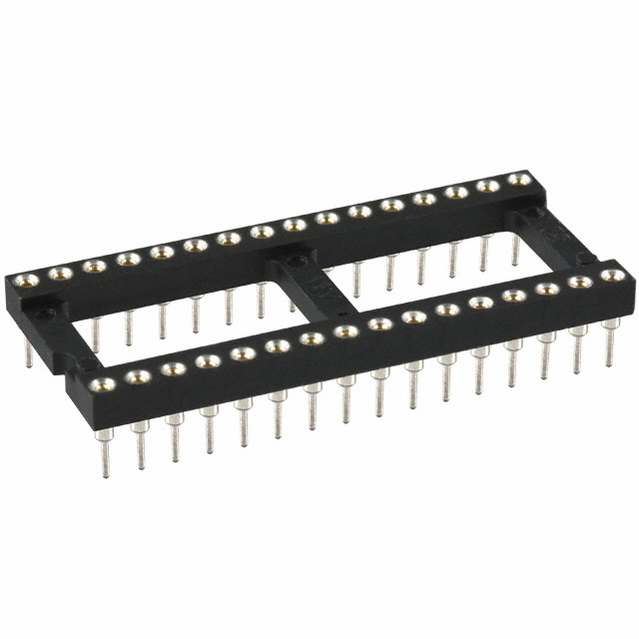

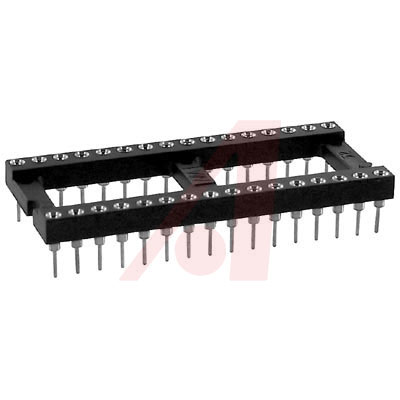

IC Socket, Solder Tail with Open Frame

* Gold over nickel contact

DIP socket, solder tail open frame, gold over nickel plating contact.

得捷:
CONN IC DIP SOCKET 32POS GOLD

贸泽:
IC 与器件插座 32P TIN PIN GLD CONT

e络盟:
插座, DIP 插座, 32路, 通孔

艾睿:
This dip socket 110-93-632-41-001000 connector socket from Mill-Max Mfg. Corp. will handle your multi-wired connections with ease. This SKT connector&s;s 32 contacts that are made out of beryllium copper alloy and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. This device has a maximum current rating of 3 A. 110-93-632-41-001000 is housed in polychlorinated terphenyl. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 40.6 mm long, 4.19 mm tall and 17.7 mm deep.

Allied Electronics:
Socket, DIP; Open; 32 Pos.; 0.100In.cen.; Solder; 0.6In.; 30muIn. Gold over 50muIn. Ni

Chip1Stop:
Conn DIP Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  110-93-632-41-001000  IC & Component Socket, 110 Series, DIP Socket, 32 Contacts, 2.54 mm, 15.24 mm, Gold Plated Contacts
