110-13-308-41-001000

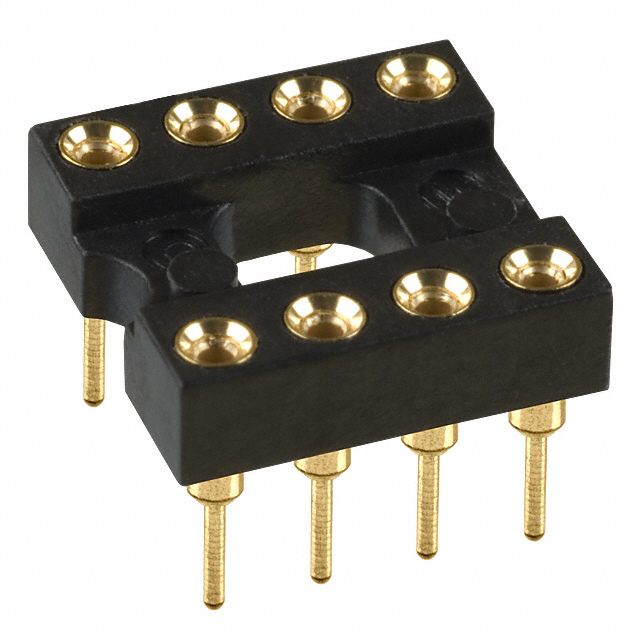

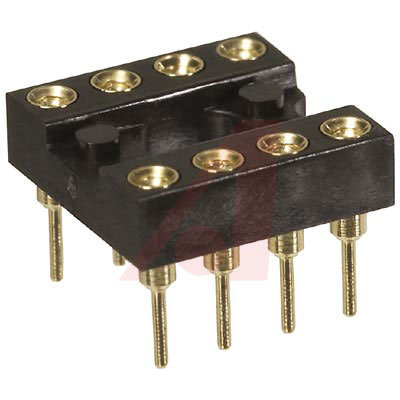

MILL MAX  110-13-308-41-001000  插座, DIP, 8路, 通孔

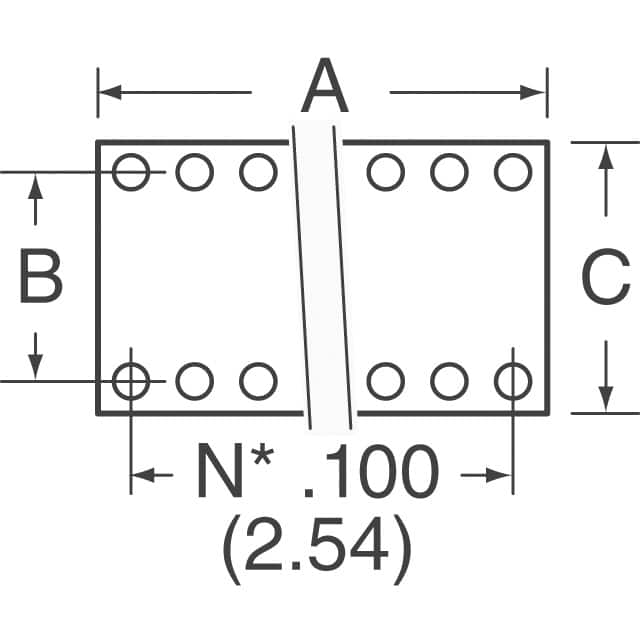

8（2 x 4） 位置 DIP，0.3"（7.62mm）行距 插口 镀金 通孔

得捷:
CONN IC DIP SOCKET 8POS GOLD

e络盟:
芯片和元件插座, 8 触点, DIP插座, 2.54 mm, 110 Series, 7.62 mm, 铍铜

艾睿:

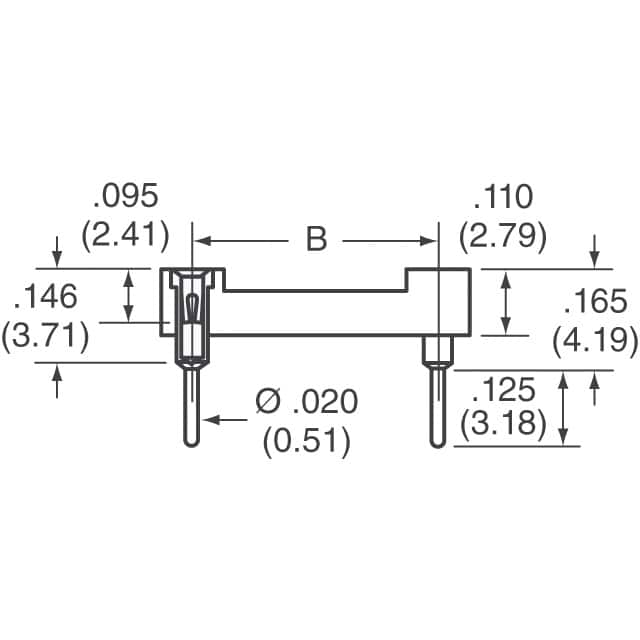

This dip socket 110-13-308-41-001000 connector socket from Mill-Max Mfg. Corp. will connect multiple wires to a single connector. This SKT connector&s;s 8 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. This device has a maximum current rating of 3 A. 110-13-308-41-001000 is housed in polychlorinated terphenyl. This product is 10.16 mm long, 4.19 mm tall and 10.16 mm deep. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Allied Electronics:
Conn; IC Socket; DIP; 8; Open; 110 Series; Thru-Hole; 0.3"; 0.1" Pin Spcng; Straight; 3A

Chip1Stop:
Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  110-13-308-41-001000  IC & Component Socket, 110 Series, DIP Socket, 8 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts
