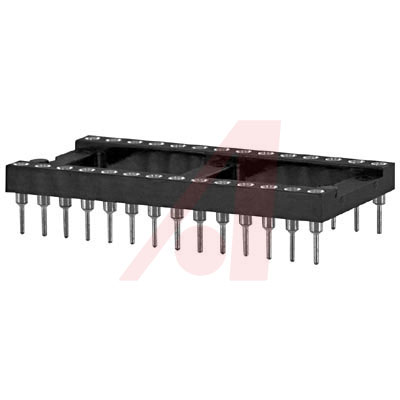

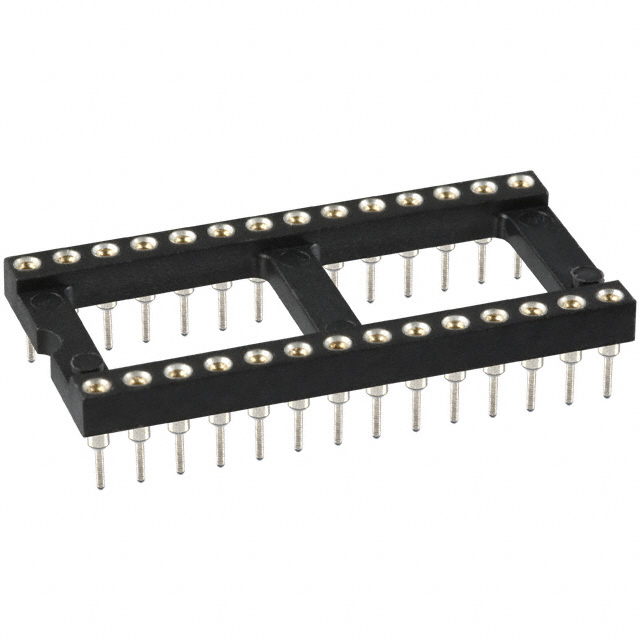

110-93-628-41-001000

28 位置 2.54mm 通孔 开放式 IC 插座

Dual In Line Socket, Standard Solder Tail Open Frame

* All DIP sockets accept 0.015 to 0.025" Dia. and standard IC No Suggestions, 4-finger BeCu #30 clip rated at 3 A

* Uses #1001 pin

得捷:
CONN IC DIP SOCKET 28POS GOLD

贸泽:
IC & Component Sockets 28P TIN PIN GLD CONT

艾睿:
Obtain a strong and tight connection for your multi-wired cables with this dip socket 110-93-628-41-001000 connector socket from Mill-Max Mfg. Corp.. This SKT connector&s;s 28 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 150 VDC|100VAC. This is a 2-row connector. It has a socket type gender. 110-93-628-41-001000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. It is insulated with polychlorinated terphenyl. It uses the solder termination method. This product is 35.5 mm long, 4.19 mm tall and 17.7 mm deep. This connector socket has an operating temperature of -55 to 125 °C.

Allied Electronics:
Socket, DIP; 28Pins; Low Profile; Open; Solder Tail; 0.6In.; Beryllium Copper; Tin/Lead

Chip1Stop:
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  110-93-628-41-001000  IC & Component Socket, 110 Series, DIP Socket, 28 Contacts, 2.54 mm, 15.24 mm, Gold Plated Contacts
