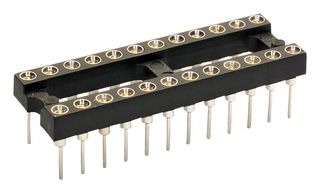

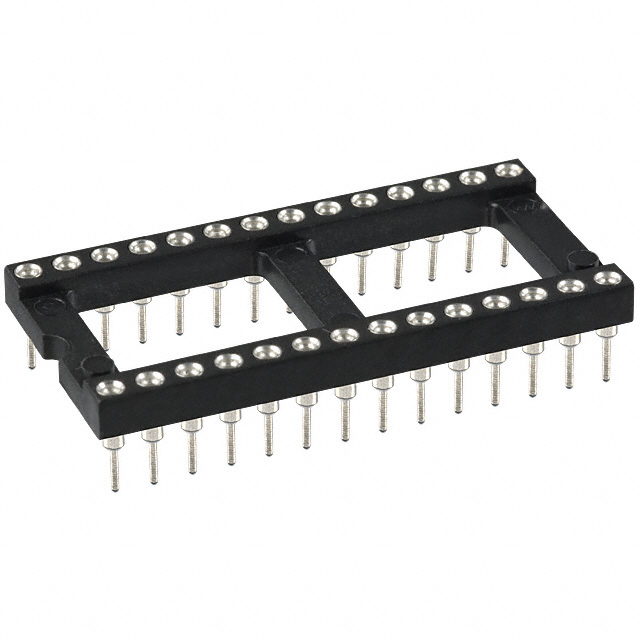

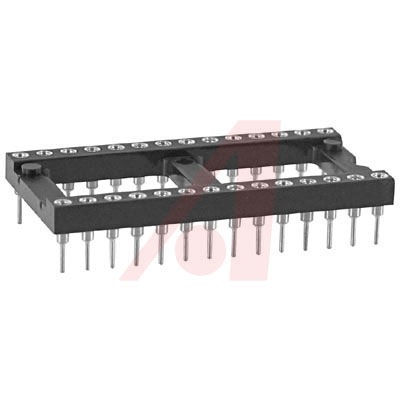

MILL MAX 110-99-628-41-001000 芯片插座, DIP, 28路, 通孔安装
28(2 x 14) 位置 DIP,0.6"(15.24mm)行距 插口 锡 - 铅 通孔
得捷:
CONN IC DIP SOCKET 28POS TINLEAD
贸泽:
IC & Component Sockets 28P TIN PIN TIN CONT
e络盟:
芯片和元件插座, 28 触点, DIP插座, 2.54 mm, 110 Series, 15.24 mm, 铍铜
艾睿:
Say goodbye to connector sockets never working by using this dip socket 110-99-628-41-001000 connector socket developed by Mill-Max Mfg. Corp. This SKT connector&s;s 28 contacts that are made out of beryllium copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. 110-99-628-41-001000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. This connector socket has an operating temperature of -55 to 125 °C. It is insulated with polychlorinated terphenyl. This product is 35.5 mm long, 4.19 mm tall and 17.7 mm deep. It uses the solder termination method.
Allied Electronics:
Socket, DIP; 28Pins; Low Profile; Open; Solder Tail; 0.6In.; Beryllium Copper; Tin/Lead
Chip1Stop:
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube
Newark:
# MILL MAX 110-99-628-41-001000 IC & Component Socket, 110 Series, DIP Socket, 28 Contacts, 2.54 mm, 15.24 mm
触点数 28
触点电镀 Tin Lead, Tin
额定电流 3 A
排数 2
针脚数 28
拔插次数 1000
安装角度 180 °
额定电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 150VDC, 100VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚数 28
封装 DIP
引脚间距 2.54 mm
长度 35.5 mm
宽度 17.7 mm
高度 4.19 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Beryllium Copper
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
110-99-628-41-001000 Mill-Max 仕元机械 | 当前型号 | 当前型号 |
110-13-628-41-001000 仕元机械 | 类似代替 | 110-99-628-41-001000和110-13-628-41-001000的区别 |
110-43-628-41-001000 仕元机械 | 类似代替 | 110-99-628-41-001000和110-43-628-41-001000的区别 |
110-44-628-41-001000 仕元机械 | 类似代替 | 110-99-628-41-001000和110-44-628-41-001000的区别 |
