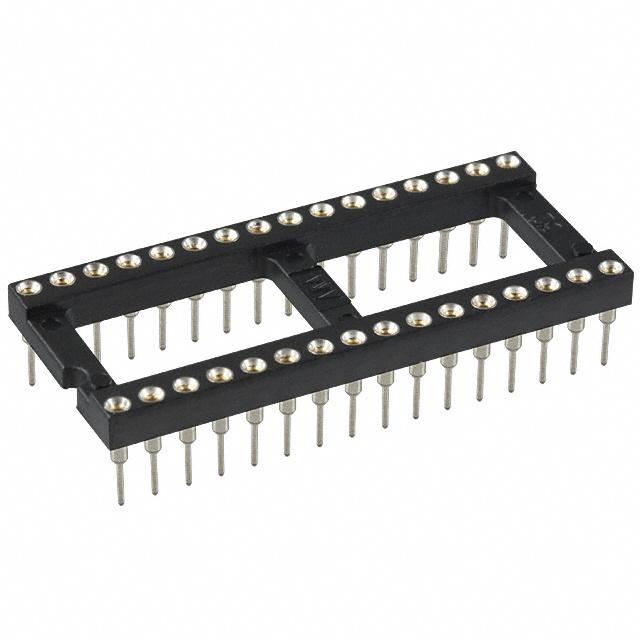

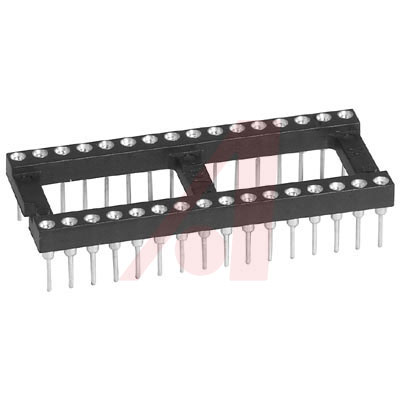

111-93-632-41-001000

Conn DIP Socket SKT 32POS 2.54mm Solder ST Thru-Hole Tube

Longer Solder Tail Open Frame DIP Sockets, Beryllium Copper Contact Material

得捷:
CONN IC DIP SOCKET 32POS GOLD

贸泽:
IC & Component Sockets 32P LONG SOLDER TAIL

艾睿:
Cleanly connect multiple wires together by using this dip socket 111-93-632-41-001000 connector socket from Mill-Max Mfg. Corp. This SKT connector&s;s 32 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. 111-93-632-41-001000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. This product is 40.64 mm long, 4.19 mm tall and 17.78 mm deep. It uses the solder termination method.

Allied Electronics:
Socket, DIP; Open; 4-Finger; 32 Pos.; Solder; PCB; 0.6In.; Ber. Copper; 30muIn. Gold; 3A

Chip1Stop:
Conn DIP Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube
