110-93-964-41-001000

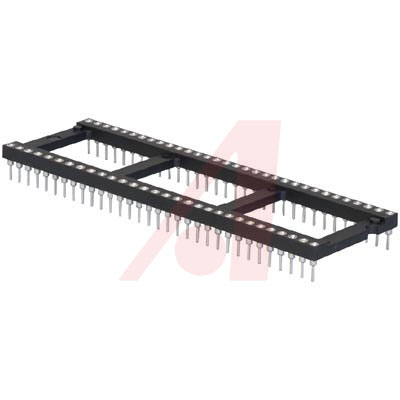

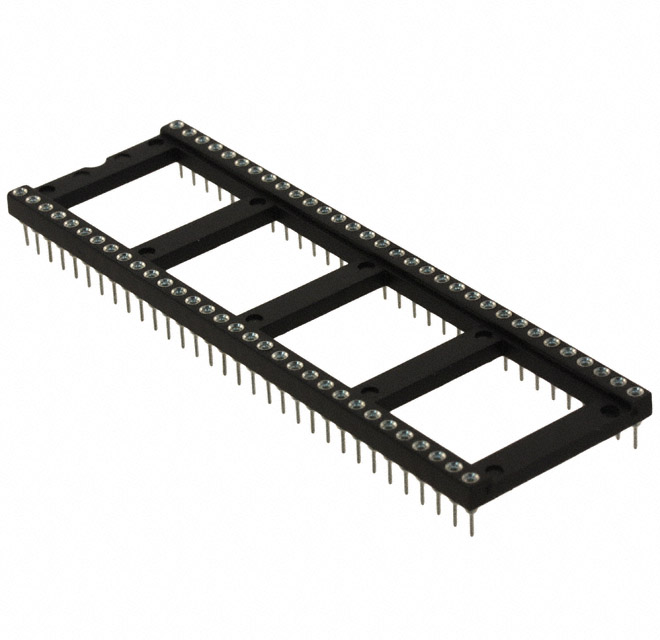

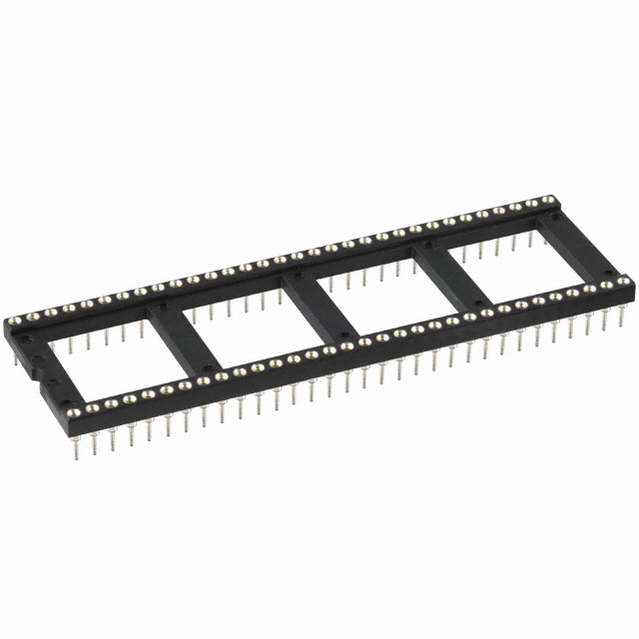

Conn DIP Socket SKT 64POS 2.54mm Solder ST Thru-Hole Tube

Standard Solder Tail Open Frame DIP Sockets, Beryllium Copper Contact Material

得捷:
CONN IC DIP SOCKET 64POS GOLD

艾睿:
Ideal for multiple wires which need to be connected this dip socket 110-93-964-41-001000 connector socket from Mill-Max Mfg. Corp. will exceed your needs. This SKT connector&s;s 64 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. This is a 2-row connector. This device has a maximum current rating of 3 A. 110-93-964-41-001000 is housed in polychlorinated terphenyl. It uses the solder termination method. This product is 81.2 mm long, 4.19 mm tall and 25.3 mm deep. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C.

Allied Electronics:
Socket, DIP; Open; 4-Finger; 64 Pos.; Solder; 0.9In.; Ber. Copper; 30muIn. Gold; 0.125In

Chip1Stop:
Conn DIP Socket SKT 64 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 64 POS 2.54mm Solder ST Thru-Hole Tube
