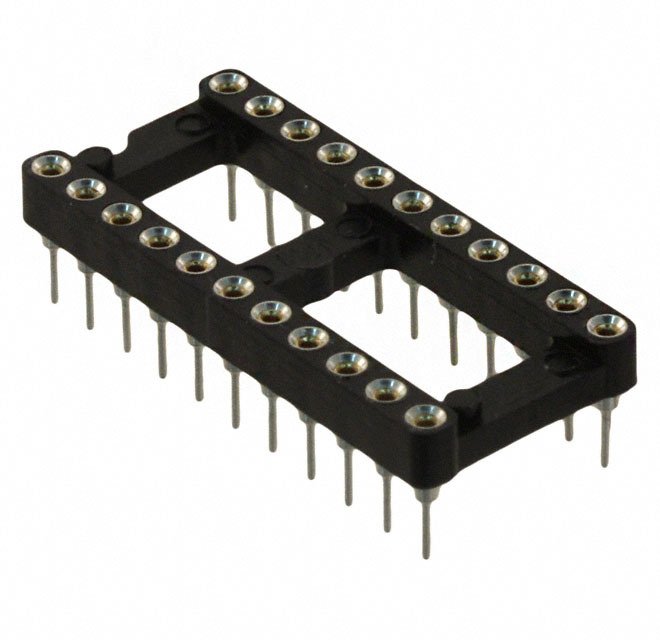

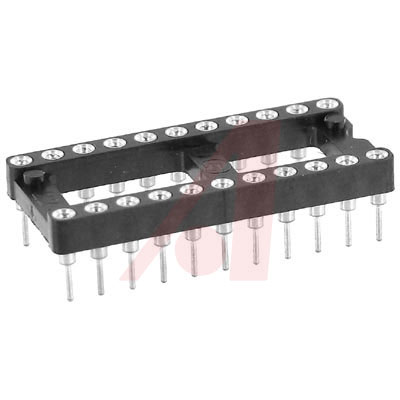

110-93-422-41-001000

Conn DIP Socket SKT 22POS 2.54mm Solder ST Thru-Hole Tube

Open Frame DIP Sockets With Integral Decoupling Capacitor, 3 A Current Rating

得捷:
CONN IC DIP SOCKET 22POS GOLD

艾睿:
Giving flexible design options, this dip socket 110-93-422-41-001000 connector socket from Mill-Max Mfg. Corp. will keep your multi-wired circuits joined with strength. This SKT connector&s;s 22 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a maximum voltage rating of 150 VDC|100VAC. This is a 2-row connector. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A. 110-93-422-41-001000 is housed in polychlorinated terphenyl. This product is 27.8 mm long, 4.19 mm tall and 12.7 mm deep. This connector socket has an operating temperature of -55 to 125 °C. It is insulated with polychlorinated terphenyl. It uses the solder termination method.

Allied Electronics:
Socket, DIP; Open; 4-Finger; 22 Pos.; Solder; 0.4In.; 30muIn. Gold; 50V; 3A; -25 to 85deg

Chip1Stop:
Conn DIP Socket SKT 22 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 22 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  110-93-422-41-001000  IC & Component Socket, DIP Socket, 22 Contacts, 2.54 mm, 10.16 mm, Gold Plated Contacts
