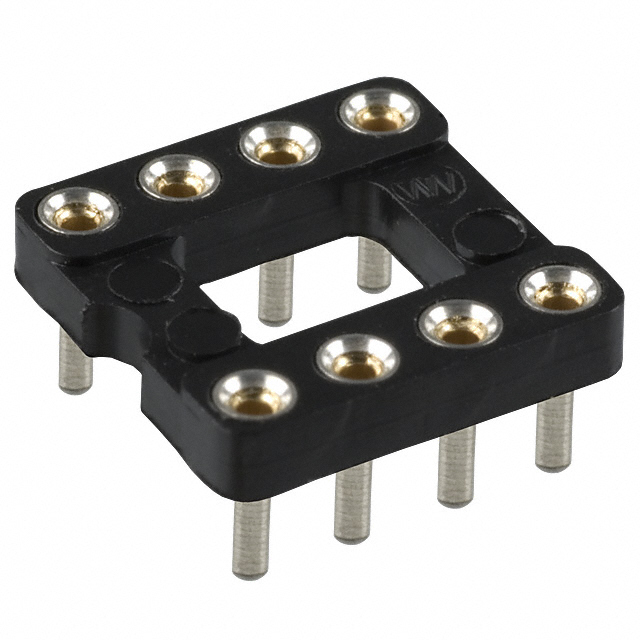

115-93-308-41-003000

MILL MAX  115-93-308-41-003000  芯片插座, DIP, 8路, 通孔安装

Dual In Line Socket, Very Low Profile Open Frame

* Low profile socket, sits only .122 " above PCB

Hi-Rel, 4-finger BeCu #30 clip rated at 3 amps.

得捷:
CONN IC DIP SOCKET 8POS GOLD

e络盟:
芯片插座, DIP, 8路, 通孔安装

艾睿:
Make a uniform cable adapter by implementing this dip socket 115-93-308-41-003000 connector socket developed by Mill-Max Mfg. Corp. This SKT connector&s;s 8 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 150 VDC|100VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a socket type gender. 115-93-308-41-003000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. It is insulated with polychlorinated terphenyl. This product is 10.16 mm long, 2.41 mm tall and 10.16 mm deep. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Allied Electronics:
Socket, DIP; 8Pins; Ultra Low Profile; Open; 0.3In.; Beryllium Copper; Gold; 0.108In.; 3

Chip1Stop:
Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  115-93-308-41-003000  IC & Component Socket, 115 Series, DIP Socket, 8 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts
