115-93-316-41-003000

IC 与器件插座 16P TIN PIN GLD CONT

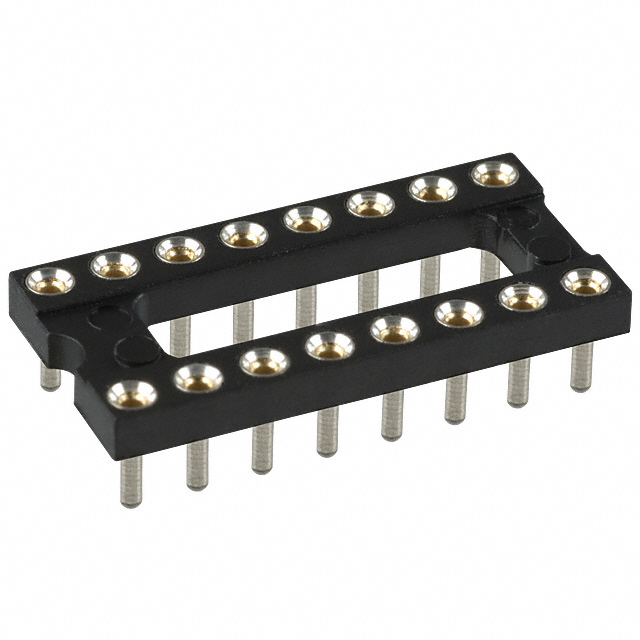

Dual In Line Socket, Very Low Profile Open Frame

* Low profile socket, sits only .122 " above PCB

Hi-Rel, 4-finger BeCu #30 clip rated at 3 amps.

得捷:
CONN IC DIP SOCKET 16POS GOLD

贸泽:
IC 与器件插座 16P TIN PIN GLD CONT

艾睿:
For multiple wires on a cable, use this dip socket 115-93-316-41-003000 connector socket from Mill-Max Mfg. Corp. to get a strong and tight connection. This SKT connector&s;s 16 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. This device has a maximum current rating of 3 A. 115-93-316-41-003000 is housed in polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. It is insulated with polychlorinated terphenyl. This product is 20.32 mm long, 2.41 mm tall and 10.16 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; IC Socket; DIP; 16; Open; 115 Series; Thru-Hole; 0.3"; 0.1" Pin Spcng; Straight; 3A

Chip1Stop:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  115-93-316-41-003000  IC & Component Socket, 115 Series, DIP Socket, 16 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts
