115-93-640-41-003000

IC 与器件插座 40P TIN PIN GLD CONT

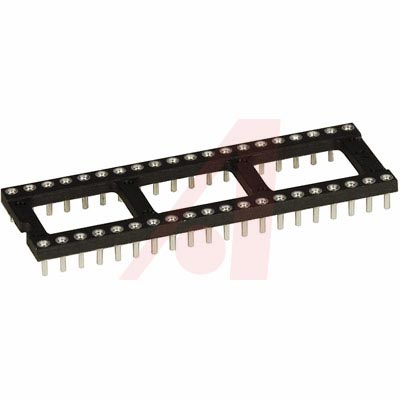

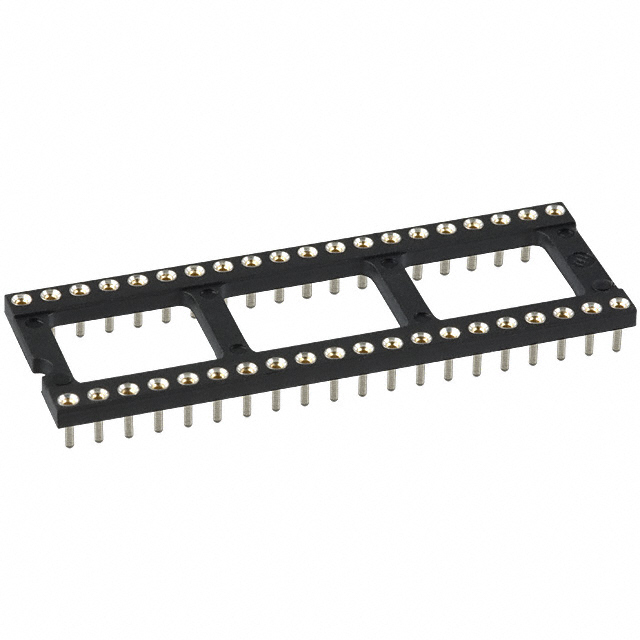

Dual In Line Socket, Very Low Profile Open Frame

* Low profile socket, sits only .122 " above PCB

Hi-Rel, 4-finger BeCu #30 clip rated at 3 amps.

得捷:
CONN IC DIP SOCKET 40POS GOLD

贸泽:
IC 与器件插座 40P TIN PIN GLD CONT

艾睿:
Ideal for multiple wires which need to be connected this dip socket 115-93-640-41-003000 connector socket from Mill-Max Mfg. Corp. will exceed your needs. This SKT connector&s;s 40 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. This is a 2-row connector. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. This device has a maximum current rating of 3 A. 115-93-640-41-003000 is housed in polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method. It is insulated with polychlorinated terphenyl. This product is 50.8 mm long, 2.41 mm tall and 17.78 mm deep.

Allied Electronics:
Socket; DIP; 40Pins; Ultra Low Profile; Open; 0.6In.; Beryllium Copper; Gold; PCB; 0.108

Chip1Stop:
Conn DIP Socket SKT 40 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 40 POS 2.54mm Solder ST Thru-Hole Tube
