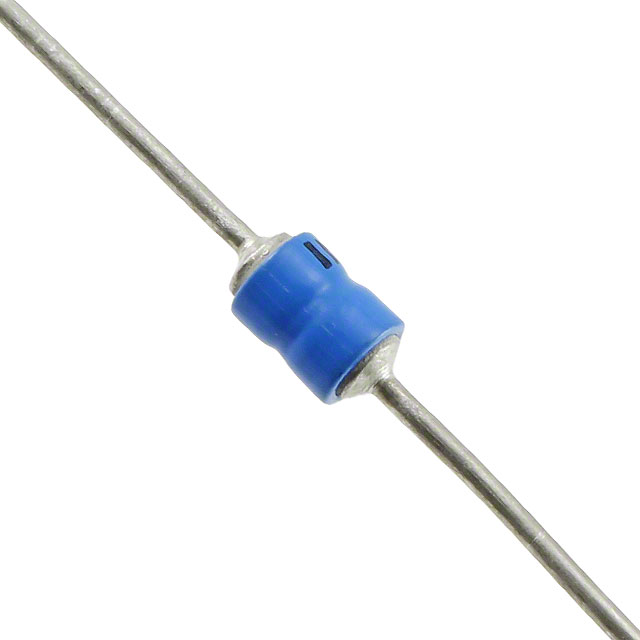

1N6468

瞬态抑制器 TRANSIENT SUPPRESSORS

This series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors TVS are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated. Working peak "Standoff" voltages are available from 5.0 to 51.6 volts. They are very robust, using a hard glass casing and internal Category 1 metallurgical bonds. These devices are also available in a surface mount MELF package configuration.

立创商城:
Vrwm:51.6V 500W

艾睿:
This 1N6468 TVS diode developed by Microsemi can help protect your expensive equipment and electronics. This device&s;s maximum clamping voltage is 78.5 V and minimum breakdown voltage is 54 V. Its test current is 1 mA. Its peak pulse power dissipation is 500 W. Its maximum leakage current is 2 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C.

Verical:
TVS Diode Single Uni-Dir 51.6V 500W 2-Pin Case E Bag
