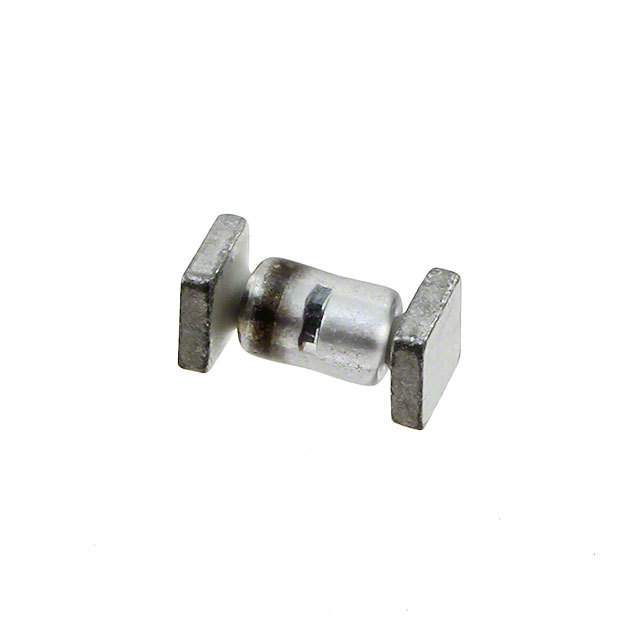

1N6463US

无空隙，密封的表面贴装单向瞬态 Voidless-Hermetically-Sealed Surface Mount Unidirectional Transient

This surface mount series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors TVS are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated. Working peak "Standoff" voltages are available from 5.0 to 51.6 volts. They are very robust, using a hard glass casing and internal Category 1 metallurgical bonds. These devices are also available in axial-leaded packages for thru-hole mounting.

艾睿:
Protect your electronic equipment from sudden or momentary overvoltage conditions with this 1N6463US TVS diode from Microsemi. Its maximum leakage current is 500 μA. This device&s;s maximum clamping voltage is 22.6 V and minimum breakdown voltage is 13.6 V. Its test current is 5 mA. Its peak pulse power dissipation is 500 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C.

Verical:
TVS Diode Single Uni-Dir 12V 500W 2-Pin E-MELF Bag
