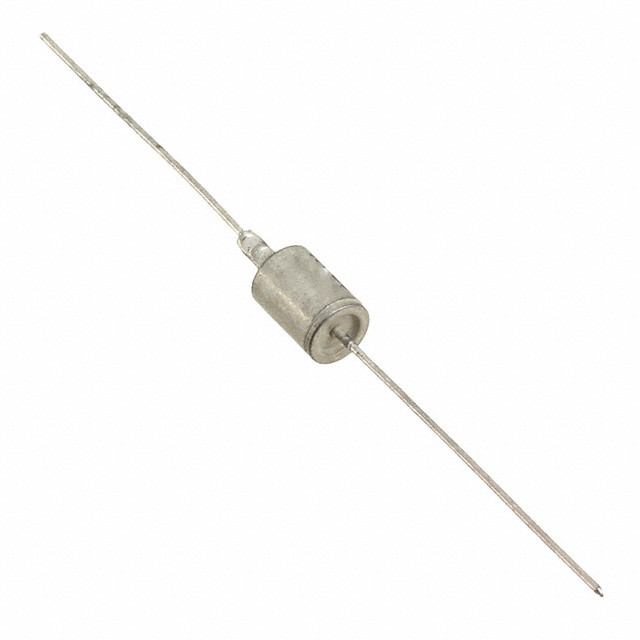

1N6071A

1500 WATT双向瞬态电压抑制器 1500 WATT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

DESCRIPTION

This popular Transient Voltage Suppressor TVS series for 1N6036 thru 1N6072A are JEDEC registered selections for bidirectional devices. All have the same high Peak Pulse Power rating of 1500W with extremely fast response times.

立创商城:
Vrwm:170V 1.5kW

艾睿:
This 1N6071A TVS diode developed by Microsemi can help protect your expensive equipment and electronics. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 294 V and minimum breakdown voltage is 190 V. This TVS diode has an operating temperature range of -65 °C to 175 °C.

Verical:
Diode TVS Single Bi-Dir 170V 1.5KW 2-Pin DO-13 Bag
