非常高的电流容量低DCR Very high current capacity Low DCR

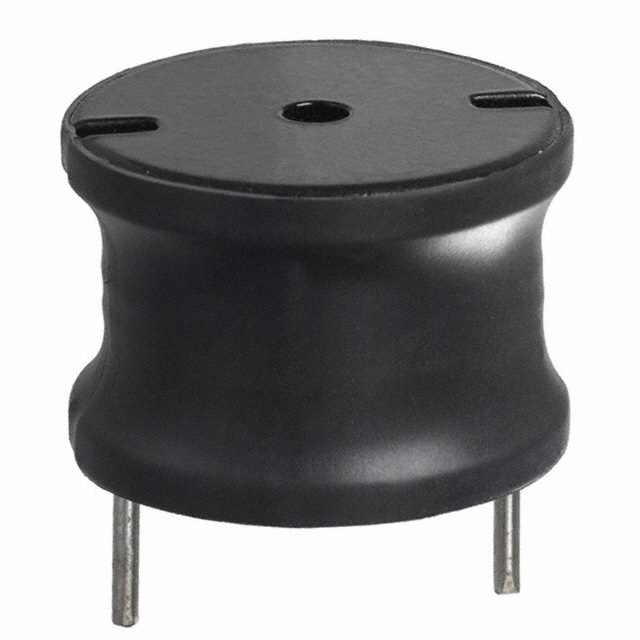

560µH Unshielded Wirewound Inductor 4.7A 125mOhm Max Radial, Vertical Cylinder
得捷:
FIXED IND 560UH 4.7A 125 MOHM TH
立创商城:
560uH ±10% 4.7A 125mΩ
艾睿:
Resist changes in electric current flow in your electrical design with this high current rf choke 1140-561K-RC leaded inductor from Bourns. This part has a pitch of 29.21 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 26.16 mm tall with a diameter of 38.1 mm. Its test frequency is 1K Hz. It has a tolerance of 10%. This leaded inductor has a maximum DC current of 4.7 A with a maximum resistance of 125m Ohm. This device is made with bobbin core technology. It has an inductance of 560u H.
Electro Sonic:
High Current RF Choke Bobbin Core 560uH 10% 1KHz Ferrite 4.7A 125mOhm DCR RDL
