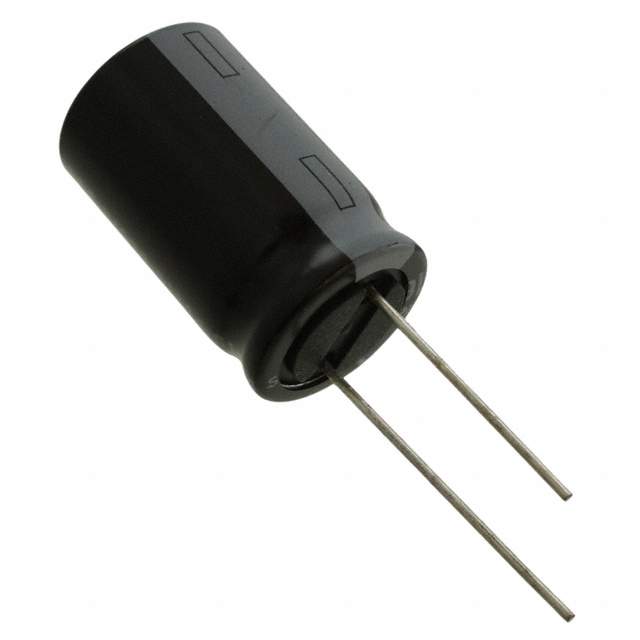

RUBYCON 16PX6800MEFC16X25 铝电解电容, 微型, PX系列, 6800 µF, ± 20%, 16 V, 16 mm, 径向引线
The is a radial leaded miniature Aluminum Electrolytic Capacitor with PET sleeve. The PX series aluminum electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- 1900mA RMS at 120Hz/105°C Rated ripple current
额定电压DC 16.0 V
电容 6800 µF
容差 ±20 %
纹波电流 1900 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2

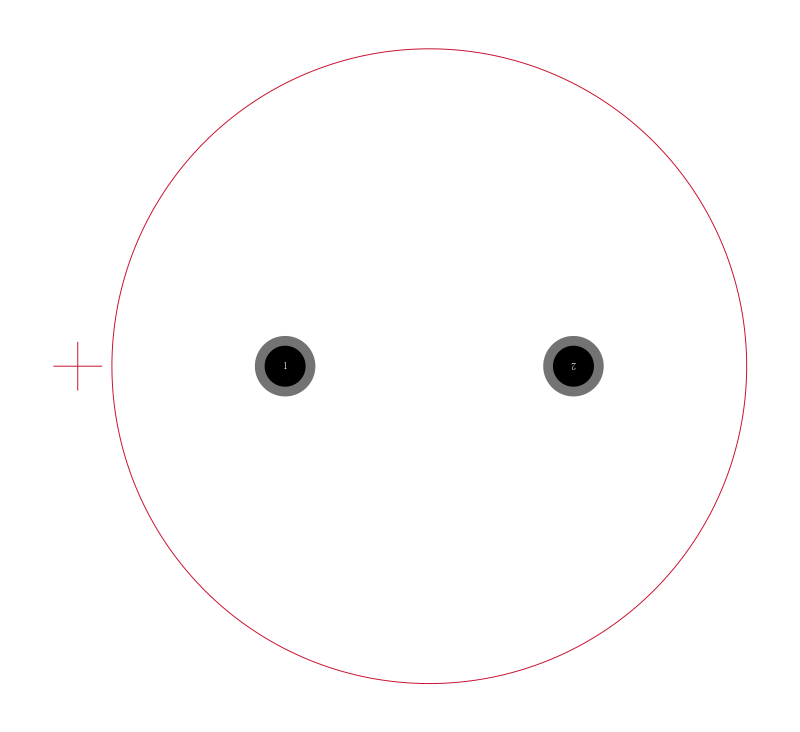

封装 Radial, CAN

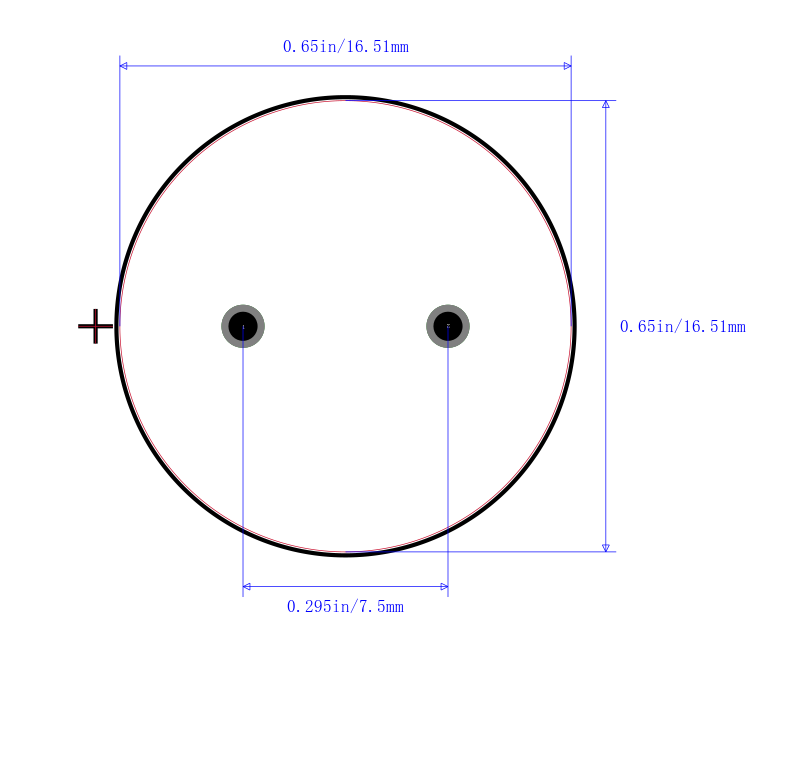

引脚间距 7.5 mm
高度 25 mm
直径 16.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 200
寿命（小时） 2000 h
制造应用 计算机和计算机周边, 国防, 国防, 军用与航空, Computers & Computer Peripherals, Consumer Electronics, Multimedia, 多媒体, 通用, 消费电子产品, Aerospace, Defence, Military, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
16PX6800MEFC16X25 Rubycon | 当前型号 | 当前型号 |
UVR1C682MHD 尼吉康 | 功能相似 | 16PX6800MEFC16X25和UVR1C682MHD的区别 |
UHE1C682MHD 尼吉康 | 功能相似 | 16PX6800MEFC16X25和UHE1C682MHD的区别 |
ESMG160ELL682MLN3S 贵弥功 | 功能相似 | 16PX6800MEFC16X25和ESMG160ELL682MLN3S的区别 |
