1500瓦Mosorb TM齐纳瞬态电压抑制器 1500 Watt Mosorb TM Zener Transient Voltage Suppressors
1500 Watt Mosorb™ Zener Transient Voltage Suppressors

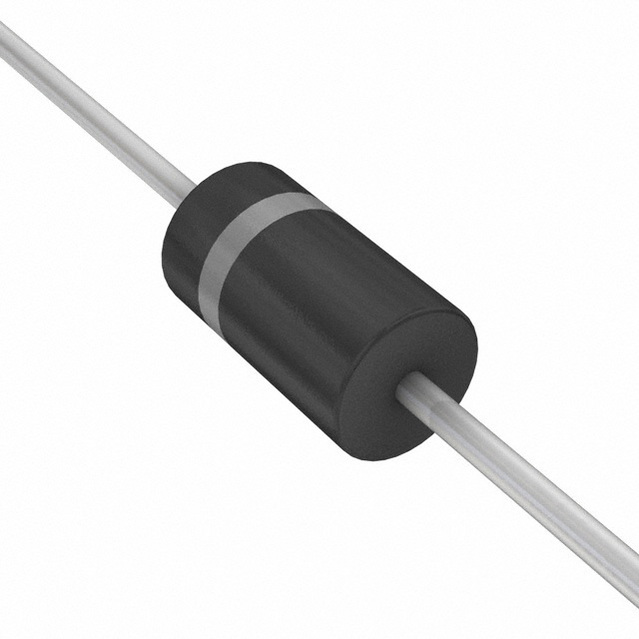

UnidirectionalMosorb devices are designed to protect voltage sensitive components from high voltage, high−energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are ’s exclusive, cost-effective, highly reliable Surmetic™ axial leaded package and are ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.
Features
• Working Peak Reverse Voltage Range − 5.8 V to 214 V
• Peak Power − 1500 Watts @ 1 ms
• ESD Rating of Class 3 >16 kV per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 μA Above 10 V
• UL 497B for Isolated Loop Circuit Protection
• Response Time is Typically < 1 ns
• Pb−Free Packages are Available
额定电压DC 30.0 V
额定功率 1.50 kW
击穿电压 30.0 V
钳位电压 41.4 V
最大反向电压(Vrrm) 25.6V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 28.5 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 41A-04
长度 9.50 mm
直径 5.30 mm
封装 41A-04
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N6282ARL4 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N6282ARL4G 安森美 | 完全替代 | 1N6282ARL4和1N6282ARL4G的区别 |
