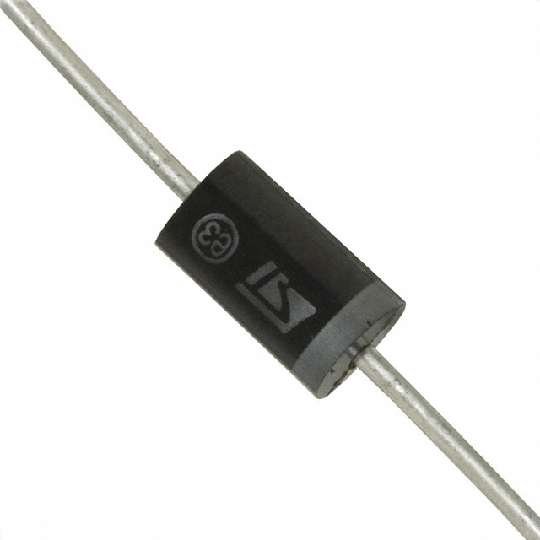

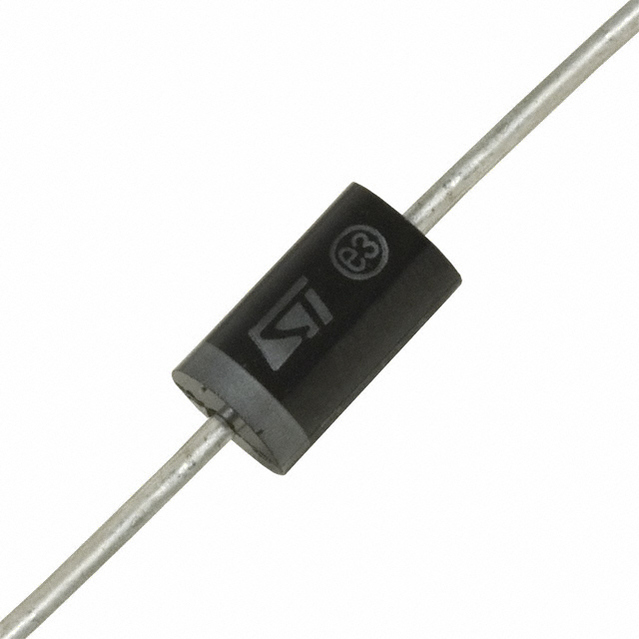

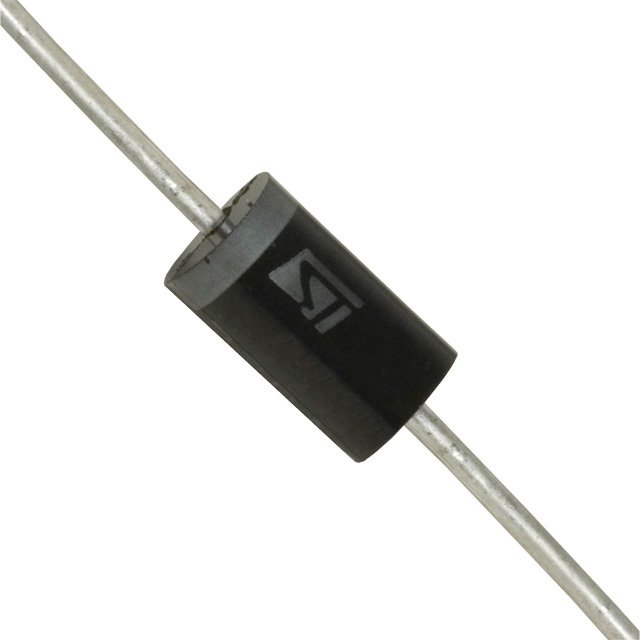

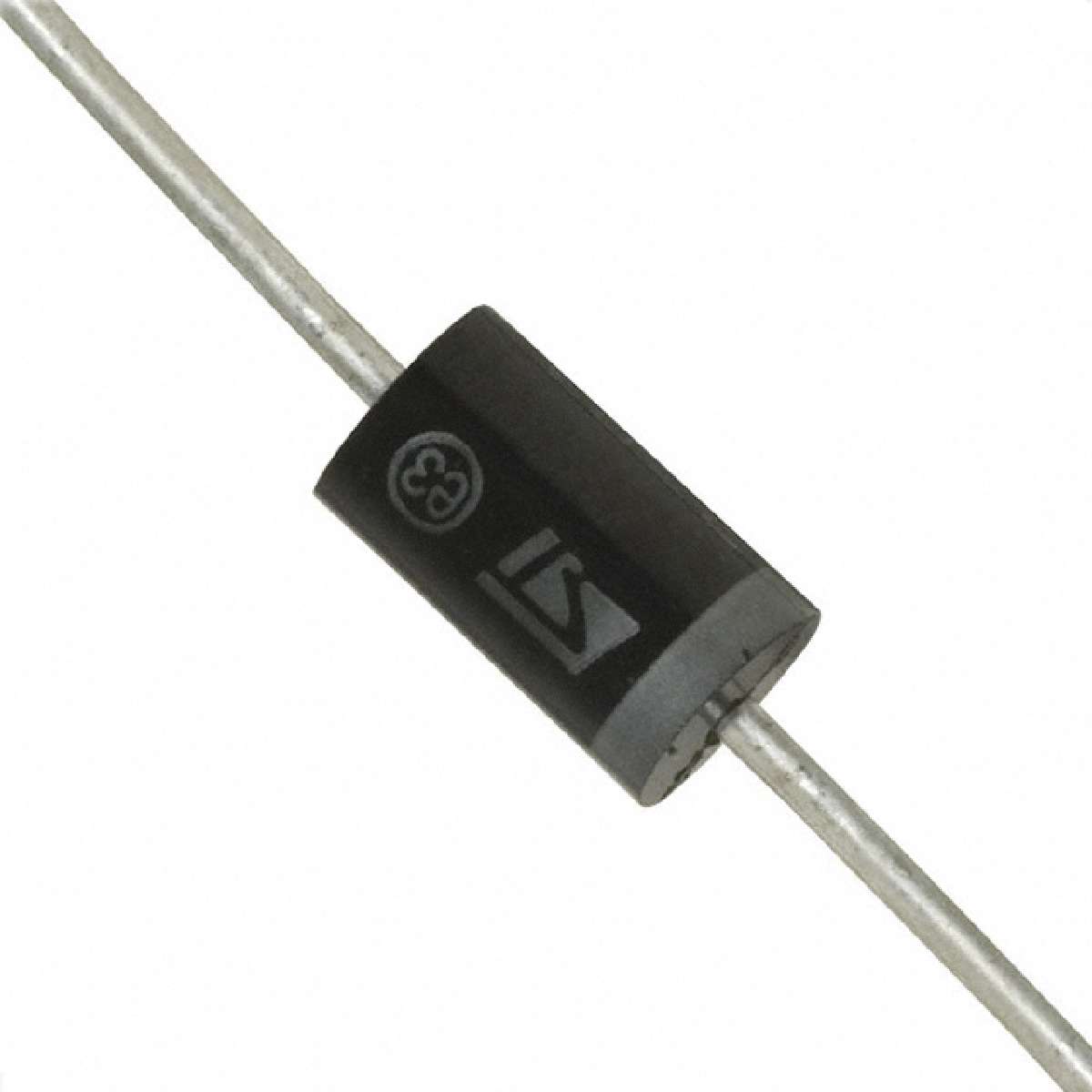

1.5KE120ARL

TVS DIODE 102VWM 212VC DO201

Description

Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.

Features

■ Peak pulse power: 1500 W 10/1000 µs

■ Breakdown voltage range: From 6.8 V to 440 V

■ Uni and bidirectional types

■ Low clamping factor

■ Fast response time

■ UL 497B file number: QVGQ2.E136224
