19-337 系列 红色/绿色/蓝色 120° 72/14/36 mcd 透明 1.7/2.7 V 贴片 LED
19-337 Series Red/Green/Blue 120° 100/180/50 mcd Clear 2.4/3.8 V Chip
立创商城:
RGB三色
得捷:
LED RGB CLEAR SMD
贸泽:
标准LED-SMD Full Color LED
艾睿:
LED Tri-Color Blue/Green/Red 468nm/518nm/632nm 6-Pin T/R
安富利:
LED SMD Top View TRI-Color Brilliant Red 624nm/Brilliant Green 525nm/Blue 470nm 4-pin Chip ø7"T/R 2k
富昌:
19-337 Series Red/Green/Blue 120° 100/180/50 mcd Clear 2.4/3.8 V Chip LED
Verical:
LED Tri-Color Blue/Green/Red 468nm/518nm/632nm 6-Pin T/R
儒卓力:
**CHIP LED RGB 0,35MM **
Win Source:
LED RGB CLEAR 2SMD
额定功率 60 mW
正向电压 2.1 V
波长 624nm Red,525nm Green,470nm Blue
发光强度 100 mcd
视角 120°
峰值波长 632nm Red,518nm Green,468nm Blue
耗散功率 95/95/60 mW
测试电流 20 mA
正向电流 20 mA
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount

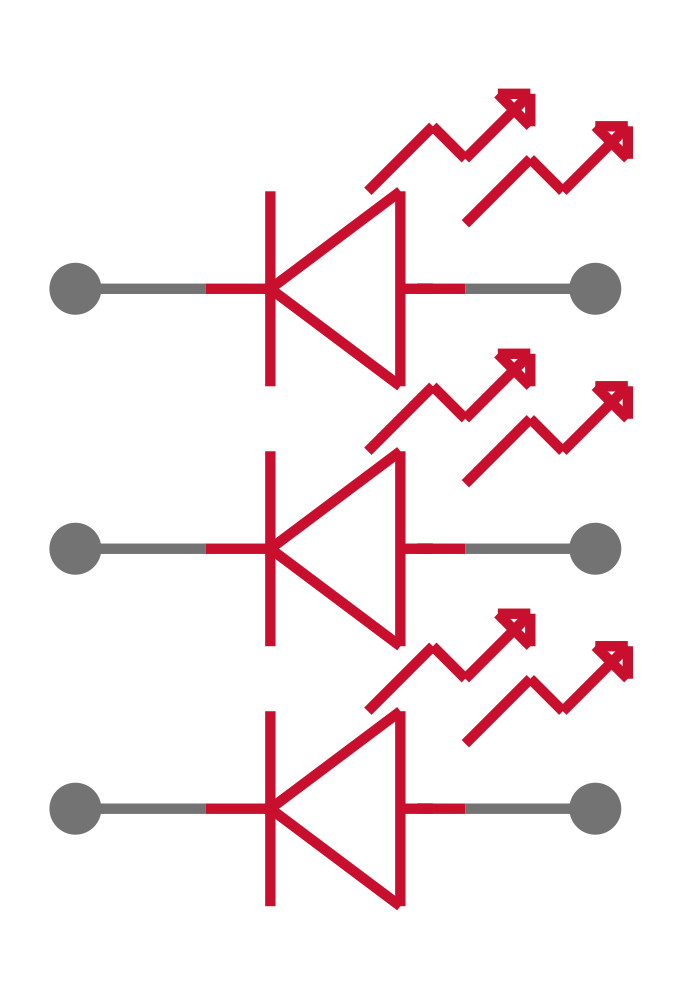

引脚数 6

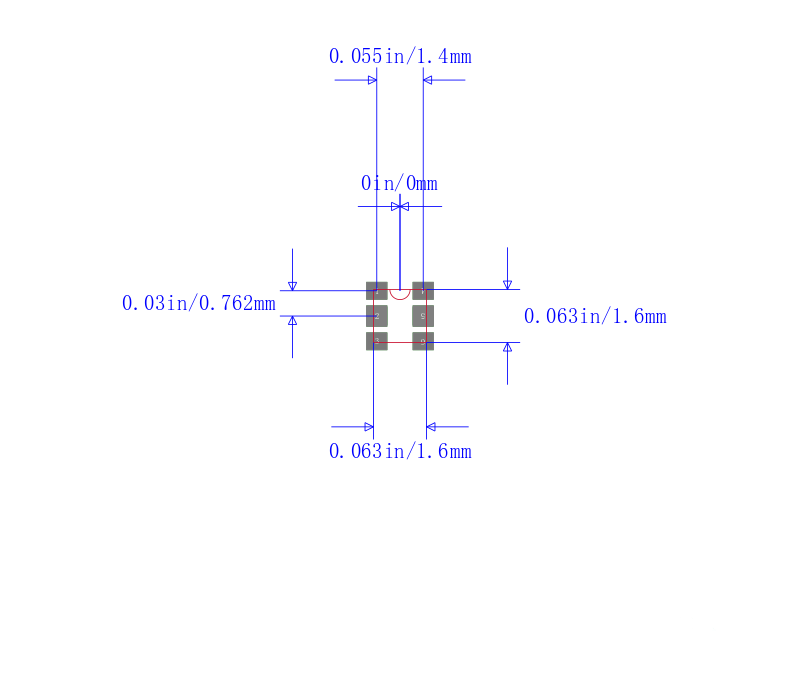

封装公制 1608
封装 SMD-2
长度 1.6 mm
宽度 1.6 mm
高度 0.35 mm
封装公制 1608
封装 SMD-2
颜色 Red, Green, Blue RGB
工作温度 -40℃ ~ 85℃
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
